Manufacturer RAB Lighting
Mfg Catalog # WPLED10YMS
North Coast Part # 1103132


  • High performance LED light engine
  • Maintains 70% of initial lumens at 100,000-hours
  • Weatherproof high temperature silicone gaskets
  • Superior heat sinking with die cast aluminum housing and external fins
  • 5-Year, No-Compromise Warranty



  • Watts: 10W
  • Color Temp: 3000K (Warm)
  • Lumens: 1,198
  • Efficacy: 96.6 lm/W
  • Color Accuracy: 74 CRI
  • L70 Lifespan: 100,000 hours
  • Type: Constant Current
  • 120V: 0.1A
  • Input Watts: 12.40W


  • Weight: 3.4 lbs


  • UL Listing: Suitable for Wet Locations as a Downlight. Suitable for Damp Locations as an Uplight. Wall Mount only. Suitable for Mounting within 4ft. of ground.
  • DLC Listed: This product is on the Design Lights Consortium (DLC) Qualified Products List and is eligible for rebates from DLC Member Utilities. DLC Product Code: P5NSZ02C

LED Characteristics

  • Lifespan: 100,000-hour LED lifespan based on IES LM-80 results and TM-21 calculations
  • Color Consistency: 3-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color


  • Cold Weather Starting: Minimum starting temperature is -40°C (-40°F)
  • Maximum Ambient Temperature: Suitable for use in 40°C (104°F)


  • THD: 10.8% at 120V, 13.8% at 277V
  • Power Factor: 98.5% at 120V, 92.1% at 277V


  • BUG Rating: B1 U0 G0


  • Buy American Act Compliance: RAB values USA manufacturing! Upon request, RAB may be able to manufacture this product to be compliant with the Buy American Act (BAA). Please contact customer service to request a quote for the product to be made BAA compliant.


UPC 01981376145

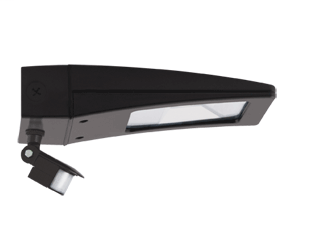

Item Long Description Lpack LED Wallpack 10W, 3000k, Junc Box with Minisensor, Bronze
GTiN 00019813761459
Finish Bronze
Voltage 100-240 Volt
Applications OUTDOOR
Weight 3.4 lb
Wattage 10 Watt
Color Temperature 3000 K
Color Accuracy 74 CRI
Lumens 1198 lm
Family Brand Name Rab Design Lighting
Lamp Type LED
Amperage 0.1 Amp
Max Operating Temperature 104 degrees F
Average Rated Life 100,000 hr
Input Wattage 12.40 W
Power Factor 92.1% At 277V,98.5% At 120V
Efficacy 96.6 LPW
Total Harmonic Distortion 10.8% At 120V,13.8% At 277V
