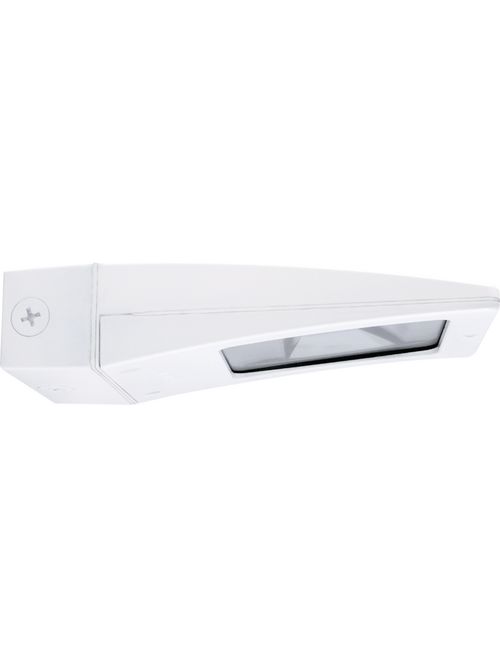

RAB WPLED13DCW WALL 13W 12V 24V DC
Product image thumbnail 0
Product image thumbnail 1
$420.78/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer RAB Lighting
Mfg Catalog # WPLED13DCW
North Coast Part # 1103137

Features

  • Low voltage DC
  • Ideal for solar applications
  • Up to 85% more energy efficient
  • No energy-loss from DC-AC inverter
  • Enables off-grid, remote-area lighting
  • 5-Year, No-Compromise Warranty

Specifications

Performance

  • Watts: 13W
  • Color Temp: 5000K (Cool)
  • Lumens: 997
  • Efficacy: 65.2 lm/W
  • Color Accuracy: 66 CRI
  • L70 Lifespan: 100,000 hours
  • Type: DC to DC
  • Input Watts: 15.30W

Dimensions

  • Weight: 3.3 lbs

LED Characteristics

  • Lifespan: 100,000-hour LED lifespan based on IES LM-80 results and TM-21 calculations
  • Color Consistency: 7-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color
  • Color Stability: LED color temperature is warrantied to shift no more than 200K in CCT over a 5-year period
  • Color Uniformity: RAB's range of CCT (Correlated Color Temperature) follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.
  • LEDs: Multi-chip 13 watt, high-output, long-life LEDs
  • Color Temperature: 5000K

Electrical

  • Electrical Input Specifications: Max Watts = 10W; Input Volts = 10-30 VDC; Operating Amps = 1.3 - 0.4A.

Construction

  • Cold Weather Starting: The minimum starting temperature is -30°C (-22°F)
  • Housing: Die-cast aluminum housing, lens frame and mounting arm
  • Mounting: Surface plate and Junction box
  • Reflector: Specular aluminum
  • Gaskets: High-temperature silicone gaskets
  • Finish: Formulated for high durability and long-lasting color
  • Green Technology: Mercury and UV free. RoHS-compliant components.
  • Starting Amps / Operating Amps: 12V DC/3.5A, 24V DC/3.5A.

Listings

  • IESNA LM-79 & LM-80 Testing: RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.

Other

  • Patents: The design of the LPACK is protected by US patents pending in US., Canada, China, Taiwan & Mexico.
  • Warranty: RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at
  • Buy American Act Compliance: RAB values USA manufacturing! Upon request, RAB may be able to manufacture this product to be compliant with the Buy American Act (BAA). Please contact customer service to request a quote for the product to be made BAA compliant.

Overview

UPC 01981302978
GTiN 00019813029788
Voltage 100-240 Volt
Type WALLPACK
Mounting Type 20
Weight 3.3 lb
Wattage 13 Watt
Color Temperature 5000 K
Color Accuracy 66 CRI
Lumens 997 lm
Family Brand Name Rab Design Lighting
Lamp Type LED
Average Rated Life 100,000 hr
Input Wattage 15.30 W
Efficacy 65.2 LPW
