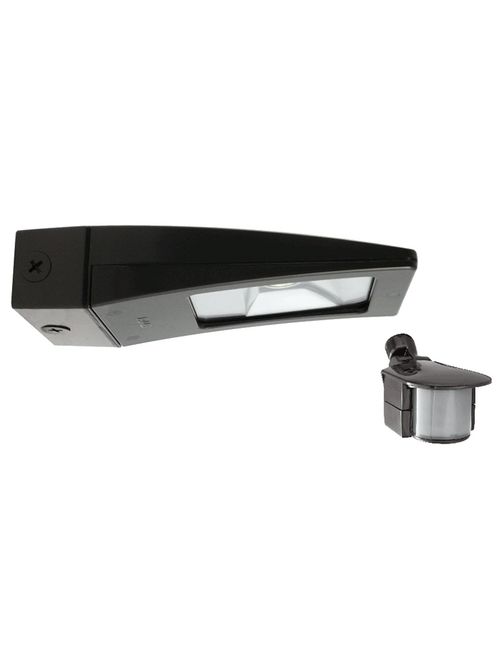

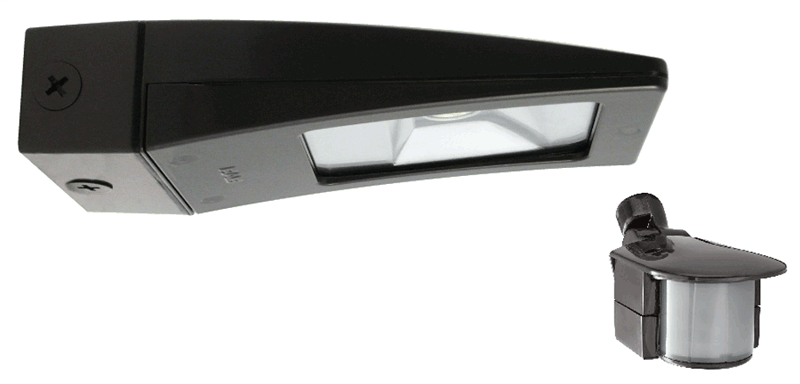

RAB WPLED13MS WALLPK 13W COOL JUNC
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$418.16/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer RAB Lighting
Mfg Catalog # WPLED13MS
North Coast Part # 1103138

Features

  • High performance LED light engine
  • Maintains 70% of initial lumens at 100,000-hours
  • Weatherproof high temperature silicone gaskets
  • Superior heat sinking with die cast aluminum housing and external fins
  • 5-Year, No-Compromise Warranty

Specifications

Performance

  • Watts: 13W
  • Color Temp: 5000K (Cool)
  • Lumens: 1,530
  • Efficacy: 100.7 lm/W
  • Color Accuracy: 73 CRI
  • L70 Lifespan: 100,000 hours
  • Type: Constant Current
  • 120V: 0.13A
  • Input Watts: 15.20W

Dimensions

  • Weight: 3.9 lbs

Listings

  • UL Listing: Suitable for Wet Locations as a Downlight. Suitable for Damp Locations as an Uplight. Wall Mount only. Suitable for Mounting within 4ft. of ground.

LED Characteristics

  • Lifespan: 100,000-hour LED lifespan based on IES LM-80 results and TM-21 calculations
  • Color Consistency: 7-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color

Electrical

  • THD: 10.4% at 120V, 16.7% at 277V
  • Power Factor: 98.8% at 120V, 92.6% at 277V

Sensor Characteristics

  • Motion Sensor Controlled: Motion Sensor Controlled 13w LED Wall pack, 120v

Optical

  • BUG Rating: B1 U0 G0

Other

  • Buy American Act Compliance: RAB values USA manufacturing! Upon request, RAB may be able to manufacture this product to be compliant with the Buy American Act (BAA). Please contact customer service to request a quote for the product to be made BAA compliant.

Overview

UPC 01981376147
Item Long Description Lpack LED Wallpack 13W, 5000k, Junc Box with Minisensor, Bronze
GTiN 00019813761473
Finish Bronze
Voltage 100-240 Volt
Type WALLPACK
Applications OUTDOOR
Weight 3.9 lb
Wattage 13 Watt
Color Temperature 5000 K
Color Accuracy 73 CRI
Lumens 1530 lm
Family Brand Name Rab Design Lighting
Lamp Type LED
Amperage 0.13 Amp
Average Rated Life 100,000 hr
Input Wattage 15.20 W
Power Factor 92.6% At 277V,98.8% At 120V
Efficacy 100.7 LPW
Total Harmonic Distortion 10.4% At 120V,16.7% At 277V
