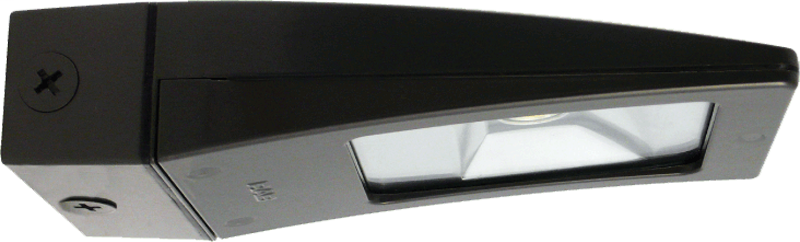

RAB WPLED13Y 13W WARM 120 TO 277 W/
$407.70/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer RAB Lighting
Mfg Catalog # WPLED13Y
North Coast Part # 1009634

Features

  • High performance LED light engine
  • Maintains 70% of initial lumens at 100,000-hours
  • Weatherproof high temperature silicone gaskets
  • Superior heat sinking with die cast aluminum housing and external fins
  • 5-Year, No-Compromise Warranty

Specifications

Performance

  • Watts: 13W
  • Color Temp: 3000K (Warm)
  • Lumens: 1,517
  • Efficacy: 99.8 lm/W
  • Color Accuracy: 74 CRI
  • L70 Lifespan: 100,000 hours
  • Type: Constant Current
  • 120V: 0.13A
  • 208V: 0.08A
  • 240V: 0.07A
  • 277V: 0.06A
  • Input Watts: 15.20W

Dimensions

  • Weight: 4.4 lbs

Listings

  • UL Listing: Suitable for Wet Locations as a Downlight. Suitable for Damp Locations as an Uplight. Wall Mount only. Suitable for Mounting within 4ft. of ground.
  • IESNA LM-79 & IESNA LM-80 Testing: RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
  • DLC Listed: This product is on the Design Lights Consortium (DLC) Qualified Products List and is eligible for rebates from DLC Member Utilities. DLC Product Code: PXV87AVZ

LED Characteristics

  • Lifespan: 100,000-hour LED lifespan based on IES LM-80 results and TM-21 calculations
  • Color Consistency: 3-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color
  • Color Stability: LED color temperature is warrantied to shift no more than 200K in CCT over a 5-year period
  • Color Uniformity: RAB's range of CCT (Correlated Color Temperature) follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.
  • Color Temperature (Nominal CCT): 3000K
  • Lumen Maintenance: The LED will deliver 70% of its initial lumens at 100,000 hours of operation

Electrical

  • Driver: Multi-chip 13W high output long life LED Driver Constant Current, Class 2 100V - 277V, 50/60 Hz
  • THD: 11.6% at 120V, 18.3% at 277V
  • Power Factor: 98.7% at 120V, 92% at 277V
  • Surge Protection: 4kV

Construction

  • Finish: Formulated for high durability and long-lasting color
  • Cold Weather Starting: Minimum starting temperature is -40°C (-40°F)
  • Maximum Ambient Temperature: Suitable for use in 55°C (131°F)
  • Green Technology: Mercury and UV free. RoHS-compliant components.
  • Gaskets: High-temperature Silicone

Other

  • Patents: The LPACK design is protected under patents pending in the U.S., Canada, China, Taiwan and Mexico.
  • Warranty: RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at
  • Equivalency: Equivalent to 100W Metal Halide
  • Buy American Act Compliance: RAB values USA manufacturing! Upon request, RAB may be able to manufacture this product to be compliant with the Buy American Act (BAA). Please contact customer service to request a quote for the product to be made BAA compliant.

Optical

  • BUG Rating: B1 U0 G0

Categories

Overview

UPC 01981301961
GTiN 00019813019611
Voltage 100-240 Volt
Type WALLPACK
Mounting Type 20
Weight 4.4 lb
Wattage 13 Watt
Color Temperature 3000 K
Color Accuracy 74 CRI
Lumens 1,517 lm
Family Brand Name Rab Design Lighting
Lamp Type LED
Amperage 0.06 Amp
Max Operating Temperature 131 degrees F
Average Rated Life 100,000 hr
Input Wattage 15.20 W
Power Factor 92% At 277V,98.7% At 120V
Efficacy 99.8 LPW
Total Harmonic Distortion 11.6% At 120V,18.3% At 277V
