Usually ships within 11 to 17 Days
Already a Customer? Log in to view your pricing
Manufacturer RAB Lighting
Mfg Catalog # WPLED18N/PC2
North Coast Part # 1103156

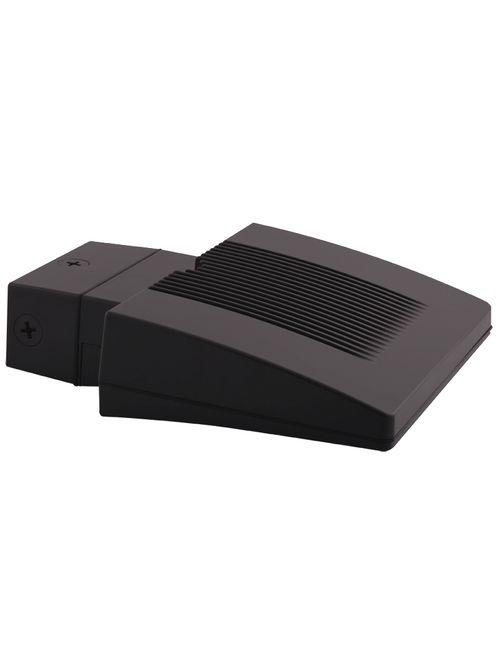

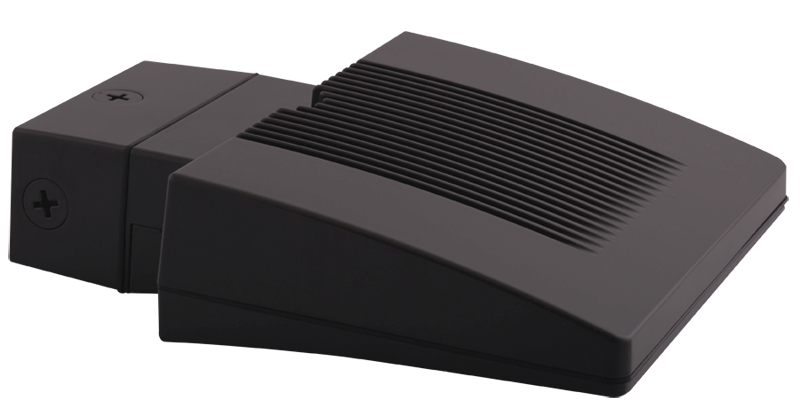

  • Ultra-high efficiency LED 18 Watt wall pack
  • Replaces 150W Metal Halide Wall packs
  • 100,00-Hour LED Lifespan
  • 5-Year, No-Compromise Warranty



  • Watts: 18W
  • Color Temp: 4000K (Neutral)
  • Lumens: 2,657
  • Efficacy: 129.6 lm/W
  • Color Accuracy: 71 CRI
  • L70 Lifespan: 100,000 hours
  • Type: Constant Current
  • 208V: 0.11A
  • 240V: 0.09A
  • 277V: 0.08A
  • Input Watts: 20.50W


  • Weight: 7.5 lbs


  • Driver: Constant Current, Class 2, 100-277V, 50/60 Hz, 4 kV surge protection, 500mA, 100-240VAC: 0.3-0.15A, 277VAC: 0.15A, Power Factor: 99%
  • THD: 9.77% at 120V, 18.41% at 277V
  • Power Factor: 99.2% at 120V, 91.5% at 277V
  • Photocell: 277V Button Photocell Included. Photocell is compatible with__208V-277V.


  • DLC Listed: This product is listed by Design Lights Consortium (DLC) as an ultra-efficient premium product that qualifies for the highest tier of rebates from DLC Member Utilities. DLC Product Code: P0000175K
  • UL Listing: Suitable for wet locations. Suitable for mounting within 1.2m (4ft) of the ground.
  • IESNA LM-79 & LM-80 Testing: RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.

LED Characteristics

  • Lifespan: 100,000-hour LED lifespan based on IES LM-80 results and TM-21 calculations
  • LED: Multi-chip, high-output, long-life LED
  • Color Consistency: 3-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color
  • Color Stability: LED color temperature is warrantied to shift no more than 200K in CCT over a 5-year period
  • Color Uniformity: RAB's range of CCT (Correlated Color Temperature) follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.


  • Maximum Ambient Temperature: Suitable for use in 40°C (104°F)
  • Cold Weather Starting: Minimum starting temperature is -40°C (-40°F)
  • Thermal Management: Superior heat sinking with external Air-Flow fins
  • Finish: Our environmentally friendly polyester powder coatings are formulated for high-durability and long-lasting color
  • Reflector: Semi-specular, vacuum-metalized polycarbonate
  • Gaskets: High-temperature silicone gaskets
  • Housing: Die-cast aluminum housing, lens frame and mounting arm
  • Mounting: Heavy-duty mounting arm with "O" ring seal & stainless steel screws
  • Green Technology: Mercury and UV free. RoHS-compliant components.


  • Patents: The design of WPLED18 is protected by US patent D608,040, Canada patent 138280, and China patent CN301649064S
  • Warranty: RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at
  • Replacement: Replaces 150W Metal Halide
  • Buy American Act Compliance: RAB values USA manufacturing! Upon request, RAB may be able to manufacture this product to be compliant with the Buy American Act (BAA). Please contact customer service to request a quote for the product to be made BAA compliant.


  • BUG Rating: B1 U0 G0


UPC 01981319617
Item Long Description Lpack Wallpack 18W, 4000k, LED Backplt & Junc Box+ 277V photocell, Bronze
GTiN 00019813196176
Finish Polyester Powder Coating
Color 4000K (4000K Neutral)
Voltage 208-277 Volt
Weight 7.5 lb
Wattage 18 Watt
Color Temperature 4000 K
Color Accuracy 71 CRI
Lumens 2657 lm
Family Brand Name Rab Design Lighting
Lamp Type LED
Amperage 0.08 Amp
Max Operating Temperature 104 degrees F
Average Rated Life 100,000 hr
Input Wattage 20.50 W
Power Factor 91.5% At 277V,99.2% At 120V
Efficacy 129.6 LPW
Total Harmonic Distortion 18.41% At 277V,9.77% At 120V
