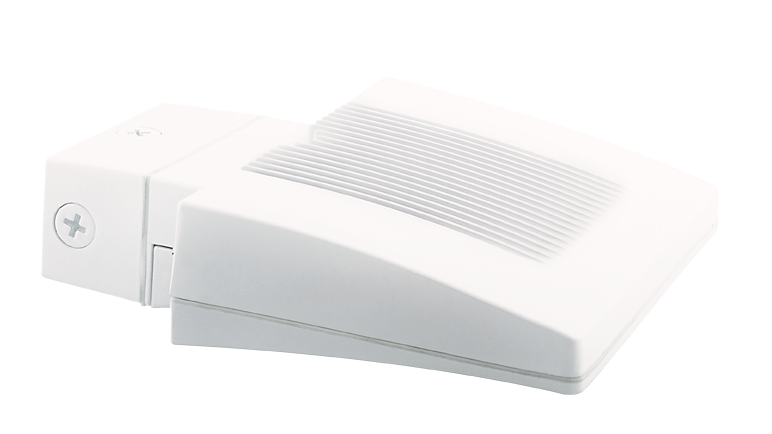

RAB WPLED18YW WALLPK 18W WARM W/ BA

Features

• Ultra-high efficiency LED 18 Watt wall pack
• Replaces 150W Metal Halide Wall packs
• 100,00-Hour LED Lifespan
• 5-Year, No-Compromise Warranty

Specifications

Performance

• Watts: 18W
• Color Temp: 3000K (Warm)
• Lumens: 2,460
• Efficacy: 118.8 lm/W
• Color Accuracy: 71 CRI
• L70 Lifespan: 100,000 hours
• Type: Constant Current
• 120V: 0.17A
• 208V: 0.11A
• 240V: 0.09A
• 277V: 0.08A
• Input Watts: 20.70W

Dimensions

• Weight: 7.5 lbs

Listings

• UL Listing: Suitable for wet locations. Suitable for mounting within 1.2m (4ft) of the ground.
• DLC Listed: This product is listed by Design Lights Consortium (DLC) as an ultra-efficient premium product that qualifies for the highest tier of rebates from DLC Member Utilities. DLC Product Code: P0000175J
• IESNA LM-79 & LM-80 Testing: RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.

LED Characteristics

• Lifespan: 100,000-hour LED lifespan based on IES LM-80 results and TM-21 calculations
• LED: Multi-chip, high-output, long-life LED
• Color Consistency: 3-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color
• Color Stability: LED color temperature is warrantied to shift no more than 200K in CCT over a 5-year period
• Color Uniformity: RAB's range of CCT (Correlated Color Temperature) follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.

Construction

• Maximum Ambient Temperature: Suitable for use in 40°C (104°F)
• Cold Weather Starting: Minimum starting temperature is -40°C (-40°F)
• Thermal Management: Superior heat sinking with external Air-Flow fins
• Finish: Our environmentally friendly polyester powder coatings are formulated for high-durability and long-lasting color
• Reflector: Semi-specular, vacuum-metalized polycarbonate
• Gaskets: High-temperature silicone gaskets
• Housing: Die-cast aluminum housing, lens frame and mounting arm
• Mounting: Heavy-duty mounting arm with "O" ring seal & stainless steel screws
• Green Technology: Mercury and UV free. RoHS-compliant components.

Other

• Patents: The design of WPLED18 is protected by US patent D608,040, Canada patent 138280, and China patent CN301649064S
• Warranty: RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at
• Replacement: Replaces 150W Metal Halide
• Buy American Act Compliance: RAB values USA manufacturing! Upon request, RAB may be able to manufacture this product to be compliant with the Buy American Act (BAA). Please contact customer service to request a quote for the product to be made BAA compliant.

Optical

• BUG Rating: B1 U0 G0

Electrical

• Driver: Constant Current, Class 2, 100-277V, 50/60 Hz, 4 kV surge protection, 500mA, 100-240VAC: 0.3-0.15A, 277VAC: 0.15A, Power Factor: 99%
• THD: 9.77% at 120V, 18.41% at 277V
• Power Factor: 99.2% at 120V, 91.5% at 277V
