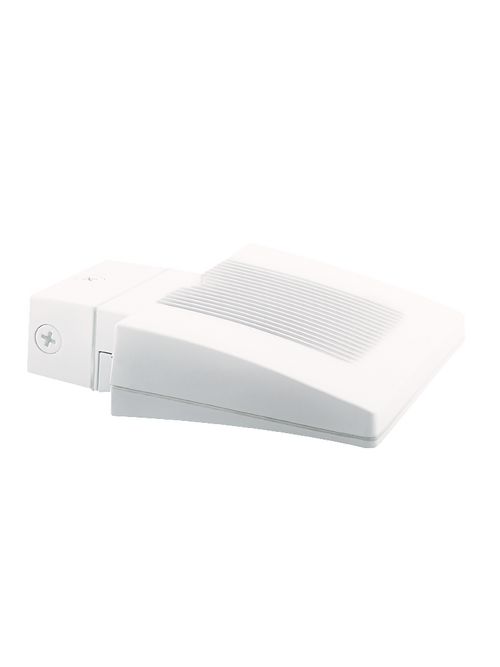

RAB WPLED26DCW WALL 26W 12V 24V DC
$504.41/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer RAB Lighting
Mfg Catalog # WPLED26DCW
North Coast Part # 1103183

Features

  • Low voltage DC
  • Ideal for solar applications
  • Up to 85% more energy efficient
  • No energy-loss from DC-AC inverter
  • Enables off-grid, remote-area lighting
  • 5-Year, No-Compromise Warranty

Specifications

Performance

  • Watts: 26W
  • Color Temp: 5000K (Cool)
  • Lumens: 2,473
  • Efficacy: 89.9 lm/W
  • Color Accuracy: 72 CRI
  • L70 Lifespan: 100,000 hours
  • Type: DC to DC
  • Input Watts: 27.50W

Dimensions

  • Weight: 6.7 lbs

LED Characteristics

  • Lifespan: 100,000-hour LED lifespan based on IES LM-80 results and TM-21 calculations
  • LEDs: Multi-chip (2)13 watt, high-output, long-life LEDs
  • Color Consistency: 7-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color
  • Color Stability: LED color temperature is warrantied to shift no more than 200K in CCT over a 5-year period
  • Color Uniformity: RAB's range of CCT (Correlated Color Temperature) follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.

Electrical

  • Electrical Input Specifications: Max Watts = 30W; Input Volts = 10-30 VDC; Operating Amps = 3.0 - 1.0A.

Construction

  • Cold Weather Starting: The minimum starting temperature is -30°C (-22°F)
  • Housing: Die-cast aluminum housing, lens frame and mounting arm
  • Mounting: Junction box and Surface Plate
  • Reflector: Specular aluminum
  • Gaskets: High-temperature silicone gaskets
  • Finish: Formulated for high durability and long-lasting color
  • Green Technology: Mercury and UV free. RoHS-compliant components.

Listings

  • IESNA LM-79 & LM-80 Testing: RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.

Other

  • Patents: The design of the LPACK is protected by US patents pending in US., Canada, China, Taiwan & Mexico.
  • Equivalency: Equivalent to 175W Metal Halide
  • Equipment: Solar panel, battery and controls by others
  • Warranty: RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at
  • Buy American Act Compliance: RAB values USA manufacturing! Upon request, RAB may be able to manufacture this product to be compliant with the Buy American Act (BAA). Please contact customer service to request a quote for the product to be made BAA compliant.

Categories

Overview

UPC 01981302982
GTiN 00019813029825
Voltage 100-240 Volt
Type WALLPACK
Weight 6.7 lb
Wattage 26 Watt
Color Temperature 5000 K
Color Accuracy 72 CRI
Lumens 2,473 lm
Family Brand Name Rab Design Lighting
Lamp Type LED
Average Rated Life 100,000 hr
Input Wattage 27.50 W
Efficacy 89.9 LPW
