Usually ships within 11 to 17 Days
Already a Customer? Log in to view your pricing
Manufacturer RAB Lighting
Mfg Catalog # WPLED26MSSW
North Coast Part # 1103185


  • Maintains 70% of initial lumens at 100,000-hours
  • Weatherproof high temperature silicone gaskets
  • Superior heat sinking with die cast aluminum housing and external fins
  • 100 up to 277 Volts
  • 5-Year, No-Compromise Warranty



  • Watts: 26W
  • Color Temp: 5000K (Cool)
  • Lumens: 3,483
  • Efficacy: 119.7 lm/W
  • Color Accuracy: 72 CRI
  • L70 Lifespan: 100,000 hours
  • Type: Constant Current
  • 120V: 0.26A
  • Input Watts: 29.10W


  • Weight: 7.2 lbs

LED Characteristics

  • Lifespan: 100,000-hour LED lifespan based on IES LM-80 results and TM-21 calculations
  • Color Consistency: 7-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color


  • DLC Listed: This product is listed by Design Lights Consortium (DLC) as an ultra-efficient premium product that qualifies for the highest tier of rebates from DLC Member Utilities. DLC Product Code: P0000170I


  • IP Rating: Ingress Protection rating of IP66 for dust and water


  • BUG Rating: B1 U0 G0


  • Equivalency: Equivalent to 175W Metal Halide
  • Buy American Act Compliance: RAB values USA manufacturing! Upon request, RAB may be able to manufacture this product to be compliant with the Buy American Act (BAA). Please contact customer service to request a quote for the product to be made BAA compliant.


  • THD: 11.91% at 120V, 9.58% at 277V
  • Power Factor: 99.7% at 120V, 97.1% at 277V


UPC 01981376176

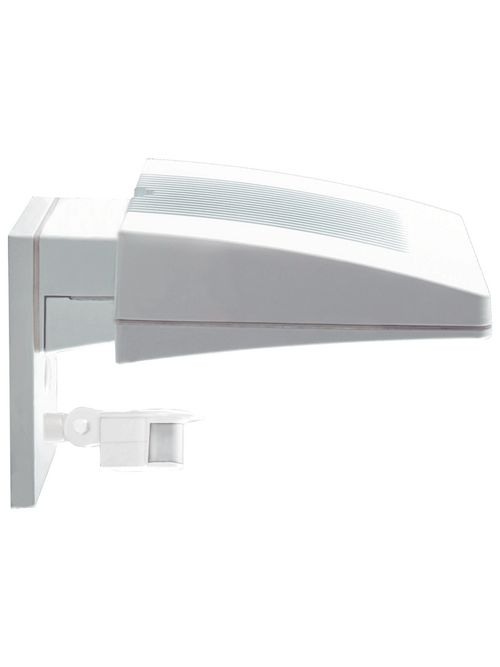

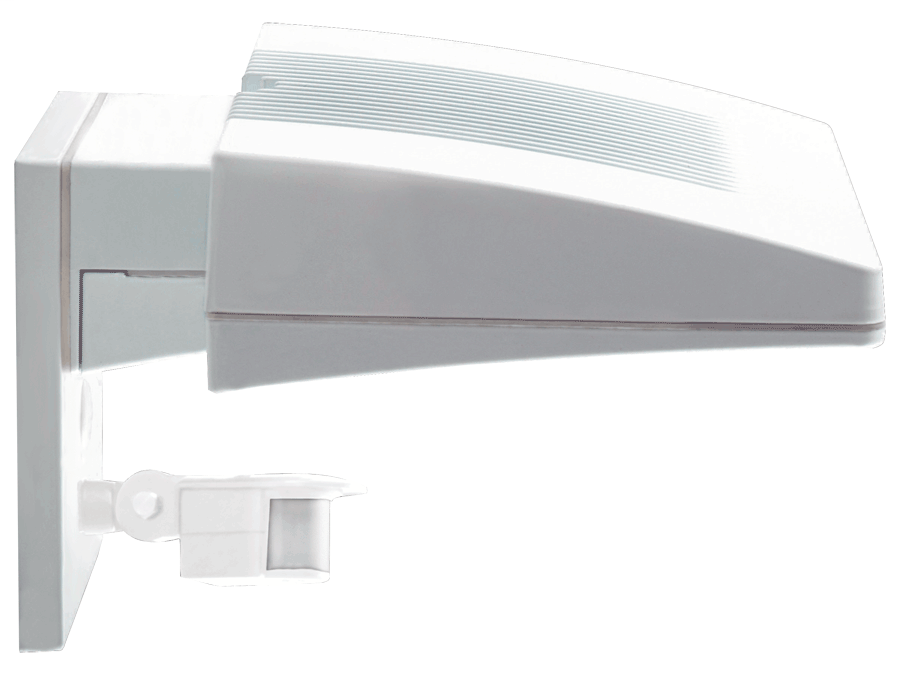

Item Long Description Lpack LED Wallpack 26W, 5000k, Surface Plate with Minisensor, White
GTiN 00019813761763
Finish WHITE
Voltage 100-240 Volt
Applications OUTDOOR
Weight 7.2 lb
Wattage 26 Watt
Color Temperature 5000 K
Color Accuracy 72 CRI
Lumens 3483 lm
Family Brand Name Rab Design Lighting
Lamp Type LED
Amperage 0.26 Amp
Average Rated Life 100,000 hr
Input Wattage 29.10 W
Power Factor 97.1% At 277V,99.7% At 120V
Efficacy 119.7 LPW
Total Harmonic Distortion 11.91% At 120V,9.58% At 277V
