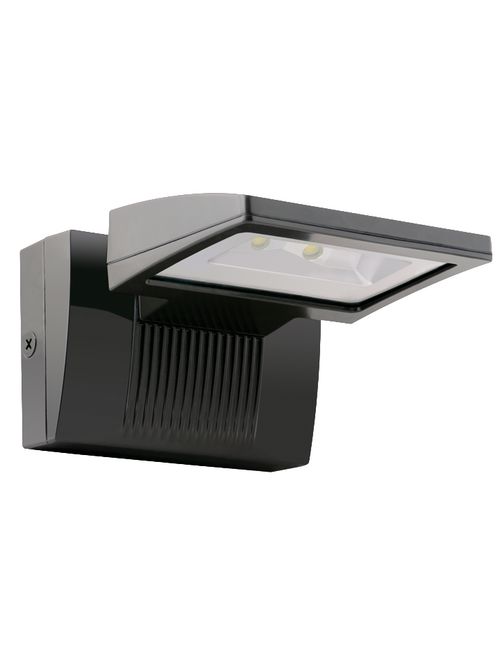

RAB WPLED26N/EC LBACKUP WALL 26W NE
$1,442.66/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer RAB Lighting
Mfg Catalog # WPLED26N/EC
North Coast Part # 1103187

Features

  • Maintains 70% of initial lumens at 100,000-hours
  • Weatherproof high temperature silicone gaskets
  • Superior heat sinking with die cast aluminum housing and external fins
  • 100 up to 277 Volts
  • 5-Year, No-Compromise Warranty

Specifications

Performance

  • Watts: 26W
  • Color Temp: 4000K (Neutral)
  • Lumens: 3,527
  • Efficacy: 121.2 lm/W
  • Color Accuracy: 71 CRI
  • L70 Lifespan: 100,000 hours
  • Type: Constant Current
  • 120V: 0.26A
  • 208V: 0.16A
  • 240V: 0.14A
  • 277V: 0.12A
  • Input Watts: 29.10W

Dimensions

  • Weight: 14.0 lbs

Construction

  • Cold Start WPLED26 with Battery Backup: Minimum starting temperature is -20°C/-4°F
  • Ambient Temperature: Suitable for use in 35°C (95°F)
  • Gaskets: High-temperature silicone
  • Housing: Precision die-cast aluminum housing, lens frame and mounting arm
  • Finish: Formulated for high durability and long-lasting color
  • Green Technology: Mercury and UV free. RoHS-compliant components.

Listings

  • DLC Listed: This product is listed by Design Lights Consortium (DLC) as an ultra-efficient premium product that qualifies for the highest tier of rebates from DLC Member Utilities. DLC Product Code: P0000175P
  • UL Listing: Suitable for Wet Locations as downlight. Wall Mount Only. Battery Backup UL 924 Listed Emergency Lighting Power Supply.

LED Characteristics

  • Lifespan: 100,000-hour LED lifespan based on IES LM-80 results and TM-21 calculations
  • LED: Two (2) 13W high-output, long-life LEDs
  • Color Consistency: 3-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color
  • Color Stability: LED color temperature is warrantied to shift no more than 200K in CCT over a 5-year period
  • Color Uniformity: RAB's range of CCT (Correlated Color Temperature) follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.

Electrical

  • Driver: Constant Current, Class 2, 50/60 Hz, 120 - 277VAC 0.4 Amps.
  • THD: 6.94% at 120V, 11.17% at 277V
  • Power Factor: 99.6% at 120V, 92.3% at 277V
  • Battery Mode: Light output use LLD of.7 to simulate light output during battery mode operation.

Battery Backup

  • Backup Battery: Two field-replaceable, high-temperature, maintenance-free, nickel-cadmium batteries

Other

  • Patents: The WPLED design is protected by U.S. Patent D634878 and Patents pending in the U.S., Canada, China, Taiwan and Mexico.
  • Equivalency: Equivalent to 175W Metal Halide
  • Buy American Act Compliance: RAB values USA manufacturing! Upon request, RAB may be able to manufacture this product to be compliant with the Buy American Act (BAA). Please contact customer service to request a quote for the product to be made BAA compliant.

Optical

  • BUG Rating: B1 U0 G0

Overview

UPC 01981303338
GTiN 00019813033389
Voltage 277 Volt
Type WALLPACK
Mounting Type 15
Weight 14.0 lb
Wattage 26 Watt
Color Temperature 4000 K
Color Accuracy 71 CRI
Lumens 3,527 lm
Family Brand Name Rab Design Lighting
Lamp Type LED
Fixture Type LED Battery Backups
Amperage 0.16 Amp
Average Rated Life 100,000 hr
Input Wattage 29.10 W
Power Factor 92.3% At 277V,99.6% At 120V
Efficacy 121.2 LPW
Total Harmonic Distortion 6.94% At 120V,11.17% At 277V
