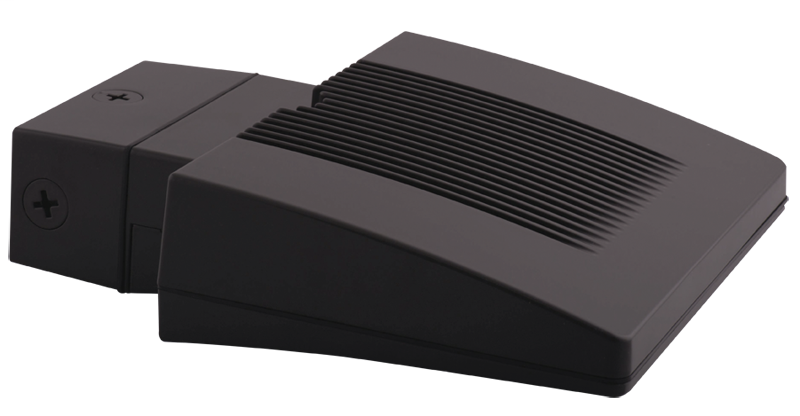

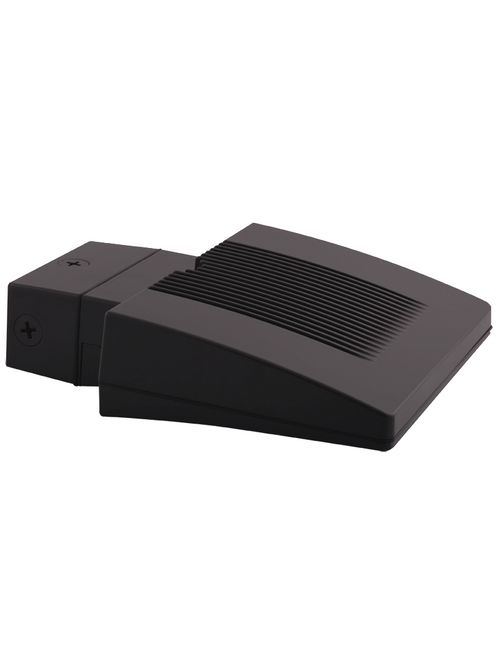

WALLPAC 26W NEUT W/BACKPLT

Features

• Maintains 70% of initial lumens at 100,000-hours
• Weatherproof high temperature silicone gaskets
• Superior heat sinking with die cast aluminum housing and external fins
• 100 up to 277 Volts
• 5-Year, No-Compromise Warranty

Specifications

Performance

• Watts: 26W
• Color Temp: 4000K (Neutral)
• Lumens: 3,527
• Efficacy: 121.2 lm/W
• Color Accuracy: 71 CRI
• L70 Lifespan: 100,000 hours
• Type: Constant Current
• 120V: 0.26A
• Input Watts: 29.10W

Dimensions

• Weight: 6.7 lbs

Electrical

• Driver: Multi-chip 26W high output long life LED Driver Constant Current, 720mA, Class 2, 6kV Surge Protection, 100V-277V, 50-60 Hz, 100-240V.4 Amps.
• THD: 6.94% at 120V, 11.17% at 277V
• Power Factor: 99.6% at 120V, 92.3% at 277V
• Photocell: 120V Button Photocell Included. Photocell is only compatible with 120V.

Listings

• DLC Listed: This product is listed by Design Lights Consortium (DLC) as an ultra-efficient premium product that qualifies for the highest tier of rebates from DLC Member Utilities. DLC Product Code: P0000175P
• UL Listing: Suitable for wet locations. Suitable for mounting within 1.2m (4ft) of the ground.

LED Characteristics

• Lifespan: 100,000-hour LED lifespan based on IES LM-80 results and TM-21 calculations
• Color Consistency: 3-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color
• Color Stability: LED color temperature is warrantied to shift no more than 200K in CCT over a 5-year period
• Color Uniformity: RAB___s range of CCT (Correlated color temperature) follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.

Construction

• IP Rating: Ingress Protection rating of IP66 for dust and water
• Finish: Formulated for high durability and long-lasting color
• Ambient Temperature: Suitable For use in 40°C (104°F)
• Cold Weather Starting: Minimum starting temperature is -40°C (-40°F)
• Green Technology: Mercury and UV free. RoHS-compliant components.

Other

• Patents: The WPLED design is protected by U.S. Pat. D634878, Canada Pat 134878, China Pat. CN301649064S.
• Equivalency: Equivalent to 175W Metal Halide
• Buy American Act Compliance: RAB values USA manufacturing! Upon request, RAB may be able to manufacture this product to be compliant with the Buy American Act (BAA). Please contact customer service to request a quote for the product to be made BAA compliant.

Optical

• BUG Rating: B1 U0 G0
