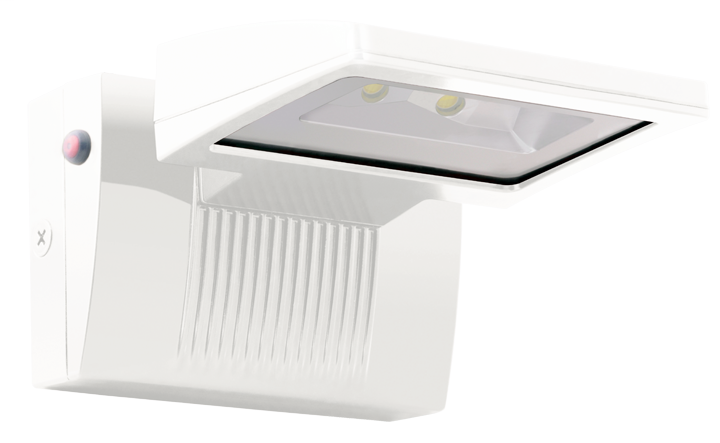

RAB WPLED26W/E LBACKUP WALL 26W COO

Features

• Maintains 70% of initial lumens at 100,000-hours
• Weatherproof high temperature silicone gaskets
• Superior heat sinking with die cast aluminum housing and external fins
• 100 up to 277 Volts
• 5-Year, No-Compromise Warranty

Specifications

Performance

• Watts: 26W
• Color Temp: 5000K (Cool)
• Lumens: 3,483
• Efficacy: 119.7 lm/W
• Color Accuracy: 72 CRI
• L70 Lifespan: 100,000 hours
• Type: Constant Current
• 120V: 0.26A
• 208V: 0.16A
• 240V: 0.14A
• 277V: 0.12A
• Input Watts: 29.10W

Dimensions

• Weight: 7.2 lbs

Electrical

• Driver: Constant Current, Class 2, 50/60 Hz, 120 - 277VAC 0.4 Amps.
• THD: 11.91% at 120V, 9.58% at 277V
• Power Factor: 99.7% at 120V, 97.1% at 277V
• Battery Backup: Minimum starting temperature is 0°C/32°F
• Battery Mode: Light output use LLD of.76 to simulate light output during battery mode operation.

Listings

• DLC Listed: This product is listed by Design Lights Consortium (DLC) as an ultra-efficient premium product that qualifies for the highest tier of rebates from DLC Member Utilities. DLC Product Code: P0000170I
• UL Listing: Suitable for Wet Locations as downlight. Wall Mount Only. Battery Backup UL 924 Listed Emergency Lighting Power Supply.

LED Characteristics

• Lifespan: 100,000-hour LED lifespan based on IES LM-80 results and TM-21 calculations
• LED: Two (2) 13W high-output, long-life LEDs
• Color Consistency: 7-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color
• Color Stability: LED color temperature is warrantied to shift no more than 200K in CCT over a 5-year period
• Color Uniformity: RAB's range of CCT (Correlated Color Temperature) follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.

Battery Backup

• Backup Battery: Two field-replaceable, high-temperature, maintenance-free, nickel-cadmium batteries

Construction

• Ambient Temperature: Suitable for use in 35°C (95°F)
• Gaskets: High-temperature silicone
• Housing: Precision die-cast aluminum housing, lens frame and mounting arm
• Finish: Formulated for high durability and long-lasting color
• Green Technology: Mercury and UV free. RoHS-compliant components.

Other

• Patents: The WPLED design is protected by U.S. Patent D634878 and Patents pending in the U.S., Canada, China, Taiwan and Mexico.
• Equivalency: Equivalent to 175W Metal Halide
• Buy American Act Compliance: RAB values USA manufacturing! Upon request, RAB may be able to manufacture this product to be compliant with the Buy American Act (BAA). Please contact customer service to request a quote for the product to be made BAA compliant.

Optical

• BUG Rating: B1 U0 G0
