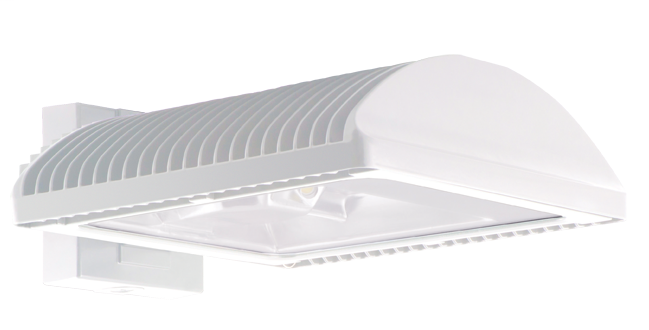

RAB WPLED4T125YFXW/PCS2 FLWALL 125W

Features

• High performance LED light engine
• Maintains 70% of initial lumens at 100,000-hours
• Weatherproof high temperature silicone gaskets
• Superior heat sinking with die cast aluminum housing and external fins
• Replaces 400W MH
• 100 up to 277 Volts
• 5-Year, No-Compromise Warranty

Specifications

Performance

• Watts: 125W
• Color Temp: 3000K (Warm)
• Lumens: 15,482
• Efficacy: 116.1 lm/W
• Color Accuracy: 71 CRI
• L70 Lifespan: 100,000 hours
• Type: Constant Current
• 208V: 0.70A
• 240V: 0.61A
• 277V: 0.52A
• Input Watts: 133.40W

Dimensions

• Weight: 34.8 lbs

Electrical

• Driver: One Driver, Constant Current, Class 2, 1800mA 100-277V, 50-60Hz, Power Factor 99%
• THD: 5.3% at 120V, 15.8% at 277V
• Photocell: 277V Swivel Photocell Included. Photocell is compatible with 208V-277V.

Listings

• DLC Listed: This product is on the Design Lights Consortium (DLC) Qualified Products List and is eligible for rebates from DLC Member Utilities. DLC Product Code: P0000179M
• UL Listing: Suitable for wet locations
• IESNA LM-79 & LM-80 Testing: RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.

LED Characteristics

• Lifespan: 100,000-hour LED lifespan based on IES LM-80 results and TM-21 calculations
• LEDs: Multi-chip, high-output, long-life LEDs
• Color Consistency: 3-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color
• Color Stability: LED color temperature is warrantied to shift no more than 200K in CCT over a 5-year period
• Color Uniformity: RAB's range of CCT (Correlated Color Temperature) follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.

Construction

• IES Classification: The Type IV distribution (also known as a Forward Throw) is especially suited for mounting on the sides of buildings and walls, and for illuminating the perimeter of parking areas. It produces a semiCircular distribution with essentially the same candlepower at lateral angles from 90° to 270°.
• IP Rating: Ingress Protection rating of IP66 for dust and water
• Maximum Ambient Temperature: Suitable for use in 40°C (104°F)
• Cold Weather Starting: Minimum starting temperature is -40°C (-40°F)
• Thermal Management: Superior thermal management with external "Air-Flow" fins
• Housing: Die-cast aluminum housing, lens frame and mounting arm
• Mounting: Heavy-duty mounting arm with "O" ring seal & stainless steel screws
• Reflector: Specular vacuum-metallized polycarbonate
• Gaskets: High-temperature silicone gaskets
• Finish: Formulated for high durability and long-lasting color
• Green Technology: Mercury and UV free. RoHS-compliant components.

Other

• Warranty: RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at
• Patents: The design of WPLED125 is protected by patents pending in US, Canada, China, Taiwan and Mexico
• Buy American Act Compliance: RAB values USA manufacturing! Upon request, RAB may be able to manufacture this product to be compliant with the Buy American Act (BAA). Please contact customer service to request a quote for the product to be made BAA compliant.

Optical

• BUG Rating: B1 U0 G2
