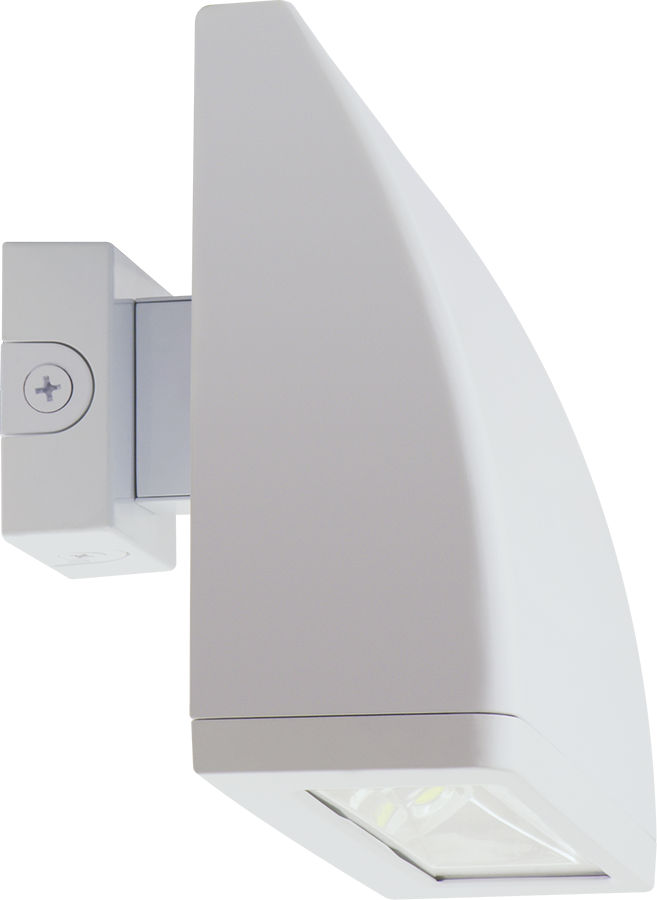

RAB WPLEDFC104NW/PCS2 WALL PK 104W

$820.65/ea

Usually ships within 11 to 17 Days

Adding...

Already a Customer? Log in to view your pricing

Features

Driver: Constant current, Class 1, 100-277V, 50/60 Hz, 4kV Surge Protection, 700mA, 100-277V = 0.95A, Power Factor 99.2%.
THD: 4.86% at 120V, 6.44% at 277V
Power Factor: 99.6% at 120V, 92.2% at 277V
Photocell: 277V Swivel Photocell Included. Photocell is compatible with 208V-277V.

UL Listing: UL Suitable for Wet Locations as Uplight and Downlight Wall Mount Only
IESNA LM-79 & LM-80 Testing: RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
DLC Listed: This product is on the Design Lights Consortium (DLC) Qualified Products List and is eligible for rebates from DLC Member Utilities. DLC Product Code: P000017AS

IP Rating: Ingress Protection rating of IP66 for dust and water
Cold Weather Starting: Minimum starting temperature is -40°C (-40°F)
Maximum Ambient Temperature: Suitable for use in 40°C (104°F)
Housing: Precision die-cast aluminum housing, door frame arm and wall bracket
Mounting: Die-cast aluminum wall bracket with (5) 1/2" conduit openings with plugs. Two-piece bracket with tether for ease of installation and wiring.
Arm: Die-cast aluminum with wiring access plate
Cutoff: Full-cutoff (0°)
Lens: Tempered glass
Reflector: Specular vacuum metallized polycarbonate
Gaskets: High-temperature silicone
Finish: Formulated for high durability and long-lasting color
Green Technology: Mercury and UV free. RoHS-compliant components.

LEDs: Four multi-chip, high-output, long-life LEDs
Lifespan: 100,000-hour LED lifespan based on IES LM-80 results and TM-21 calculations
Color Consistency: 3-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color
Color Stability: LED color temperature is warrantied to shift no more than 200K in CCT over a 5-year period
Color Uniformity: RAB's range of CCT (Correlated Color Temperature) follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377.2011.

Patents: The design of the WPLEDFC104 is protected by patents pending in US, Canada, China, Taiwan and Mexico
Warranty: RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at
Equivalency: Equivalent to 400W Metal Halide
Buy American Act Compliance: RAB values USA manufacturing! Upon request, RAB may be able to manufacture this product to be compliant with the Buy American Act (BAA). Please contact customer service to request a quote for the product to be made BAA compliant.
