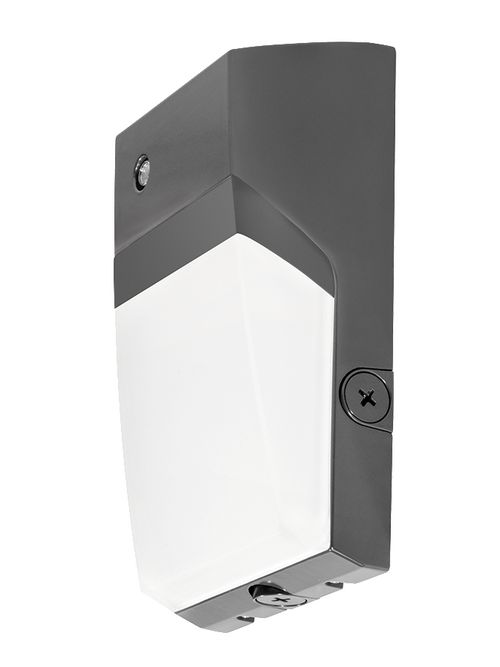

RAB WPTLED25N/D10/PC2 25 watt 120 to 277 Volt 0 to 10 Dimming Neutral Photocell Bronze LED Tall Pack

Features

• Covers footprints of most HID tall packs
• 0-10V dimmable driver & 120 - 277V photocell
• Vandal-resistant lens
• 100,000-Hour LED lifespan

Specifications

Performance

• Watts: 25W
• Color Temp: 4000K (Neutral)
• Lumens: 2,517
• Efficacy: 105.8 lm/W
• Color Accuracy: 73 CRI
• L70 Lifespan: 100,000 hours
• Type: Constant Current
• 120V: 0.201A
• 208V: 0.126A
• 240V: 0.109A
• 277V: 0.096A
• Input Watts: 23.80W

Dimensions

• Weight: 6.5 lbs

Listings

• UL Listing: Suitable for wet locations. Wall mount only.
• IESNA LM-79 & LM-80 Testing: RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.

LED Characteristics

• Lifespan: 100,000-hour LED lifespan based on IES LM-80 results and TM-21 calculations
• LEDs: Long-life, high-efficacy surface mount LEDs
• Color Stability: LED color temperature is warrantied to shift no more than 200K in CCT over a 5-year period
• Color Uniformity: RAB's range of CCT (Correlated Color Temperature) follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.

Optical

• BUG Rating: B0 U3 G2

Construction

• Ambient Temperature: Suitable for -40°C (-40°F) to 40°C (104°F)
• Cold Weather Starting: Minimum starting temperature is -40°C (-40°F)
• Thermal Management: Superior thermal management with die-cast aluminum heatsink
• Housing: Precision die-cast aluminum
• Refractor Lens: High-impact, diffuse, UV-stabilized polycarbonate
• Mounting: Three (3) 1/2" NPS conduit entry points (2 sides for through-feed, and bottom), and drilling template for easy wall box mounting
• Reflector: High-gloss white aluminum
• Gaskets: High-temperature silicone gaskets
• Finish: Formulated for high durability and long-lasting color
• Green Technology: Mercury and UV free. RoHS-compliant components.

Electrical

• Drivers: Constant Current, Class 2, 550mA, 100-277V, 50-60Hz, 120V: 0.201A, 208V: 0.126A, 240V: 0.109A, 277V: 0.096A, Surge Protection: 6kV
• Dimming Driver: 0-10V dimming driver standard for ultimate flexibility. Use as on/off or utilize the 0-10V DC dimming circuit for controls.
• THD: 12.6% at 120V, 16.4% at 277V
• Power Factor: 98.8% at 120V, 91.4% at 277V
• Photocell: Photocell is rated for 120V thru 277V. To disable, simply use the provide silicone rubber cap and cover.

Other

• Warranty: RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at
• Patents: The design of WPTLED is protected by patents pending in US, Canada, China, Taiwan and Mexico
• Equivalency: Equivalent to 70W Metal Halide/50W HPS
• Buy American Act Compliance: RAB values USA manufacturing! Upon request, RAB may be able to manufacture this product to be compliant with the Buy American Act (BAA). Please contact customer service to request a quote for the product to be made BAA compliant.
