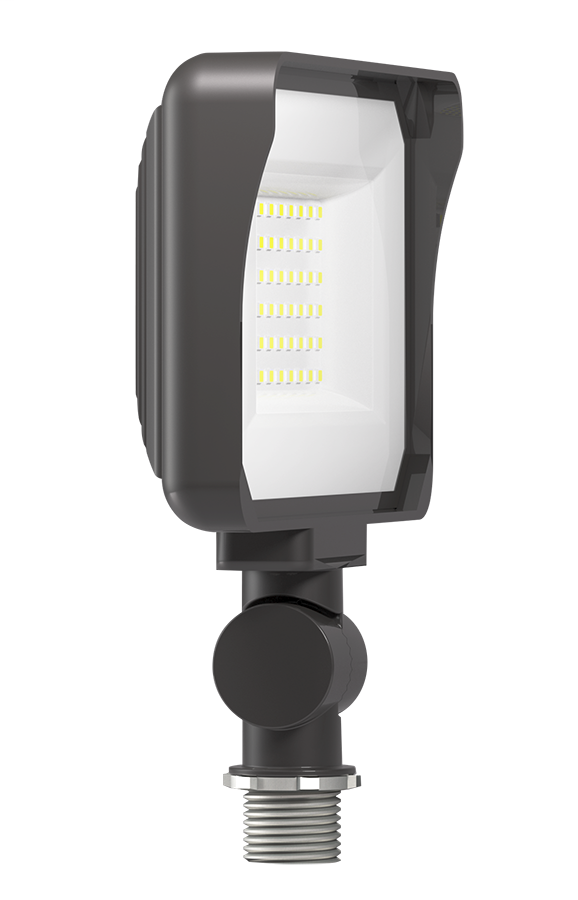

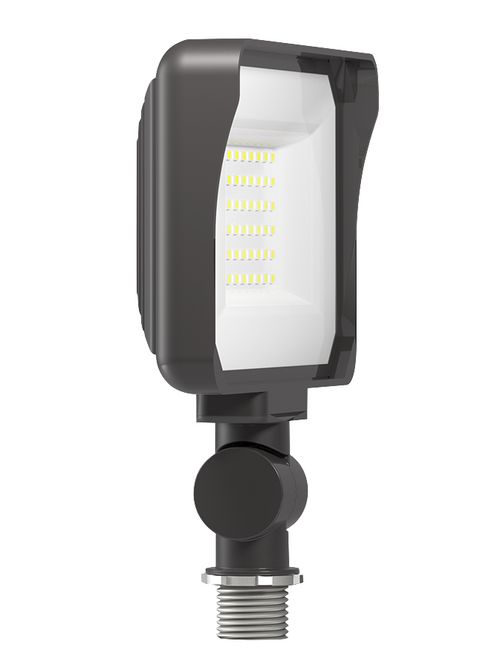

RAB X34-35L/120 X34 FLOOD 35W 3500L
$109.52/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer RAB Lighting
Mfg Catalog # X34-35L/120
North Coast Part # 1686793

Features

  • General purpose floodlight
  • Very wide 7H x 7V NEMA distribution
  • Low profile and lightweight
  • IP65 rating protects against dust and water

Specifications

Performance

  • Watts: 35W
  • Color Temp: 5000K (Cool)
  • Lumens: 3,501
  • Efficacy: 102.7 lm/W
  • Color Accuracy: 85 CRI
  • L70 Lifespan: 50,000 hours
  • Type: Constant Current
  • 120V: 0.3A
  • Input Watts: 34.10W

Dimensions

  • Weight: 1.4 lbs

Listings

  • UL Listing: Suitable for wet locations. Suitable for ground mounting.
  • IESNA LM-79 & LM-80 Testing: RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
  • DLC Listed: This product is on the Design Lights Consortium (DLC) Qualified Products List and is eligible for rebates from DLC Member Utilities. DLC Product Code: PDUO3X4U

Electrical

  • Driver: Constant Current, 120V, 60 Hz, 120V: 0.287A
  • THD: 14% at 120V
  • Power Factor: 99% at 120V
  • Surge Protection: 2kV
  • Note: All values are typical (tolerance +/- 10%)

Optical

  • NEMA Type: NEMA Beam Spread of 7H x 7V

LED Characteristics

  • LEDs: Long-life, high-efficacy surface mount LEDs
  • Lifespan: 50,000-hour LED lifespan based on IES LM-80 results and TM-21 calculations
  • Color Uniformity: RAB's range of CCT (Correlated Color Temperature) follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.

Construction

  • IP Rating: Ingress Protection rating of IP65 for dust and water
  • Cold Weather Starting: Minimum starting temperature is -40°C (-40°F)
  • Maximum Ambient Temperature: Suitable for use in 40°C (104°F)
  • Housing: Die cast aluminum
  • Mounting: Heavy-duty mounting arm with "O" ring seal & stainless steel screw
  • Lens: Tempered glass
  • Finish: Formulated for high durability and long-lasting color
  • Green Technology: Mercury and UV free. RoHS-compliant components.

Other

  • Equivalency: Equivalent to 150W Metal Halide
  • 5 Yr Limited Warranty: The RAB 5-year, limited warranty covers light output, driver performance and paint finish. RAB's warranty is subject to all terms and conditions found at
  • Buy American Act Compliance: RAB values USA manufacturing! Upon request, RAB may be able to manufacture this product to be compliant with the Buy American Act (BAA). Please contact customer service to request a quote for the product to be made BAA compliant.

Overview

UPC 01981374287
GTiN 00019813742878
Weight 1.4 lb
Wattage 35 Watt
Color Temperature 5000 K
Color Accuracy 85 CRI
Lumens 3,501 lm
Family Brand Name RAB Design Lighting
Amperage 0.3 Amp
Max Operating Temperature 104 degrees F
Average Rated Life 50,000 hr
Input Wattage 34.10 W
Power Factor 99% At 120V
Efficacy 102.7 LPW
Total Harmonic Distortion 14% At 120V
Type FLOODLIGHT
Applications OUTDOOR
