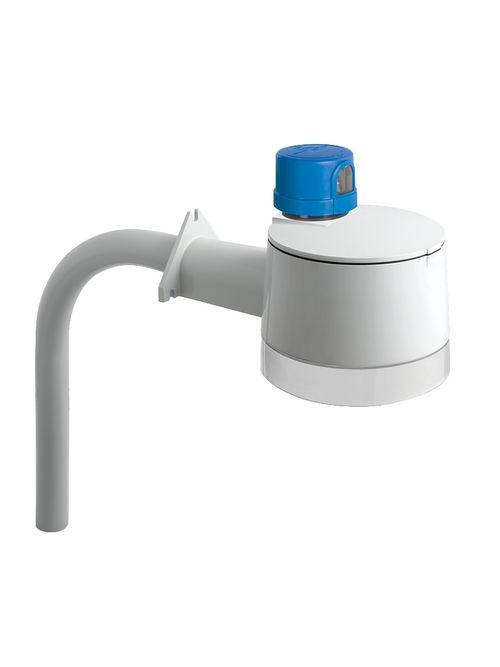

RAB YBLED26Y/ARM/PCT YRDBLST 26WMLE
Product image thumbnail 0
Product image thumbnail 1
$300.56/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer RAB Lighting
Mfg Catalog # YBLED26Y/ARM/PCT
North Coast Part # 1340589

Features

  • Widespread light distribution illuminates large areas
  • Vandal-resistant
  • High-impact polycarbonate lens
  • Rugged die-cast aluminum housing withstands harsh environments
  • Integrated dusk to dawn photocell
  • 100,000-hour LED lifespan

Specifications

Performance

  • Watts: 26W
  • Color Temp: 3000K (Warm)
  • Lumens: 3,531
  • Efficacy: 119.3 lm/W
  • Color Accuracy: 83 CRI
  • L70 Lifespan: 100,000 hours
  • Type: Constant Current
  • 120V: 0.25A
  • 208V: 0.16A
  • 240V: 0.14A
  • 277V: 0.12A
  • Input Watts: 29.60W

Dimensions

  • Weight: 11.9 lbs

Electrical

  • Driver: Constant Current, 120V, 50/60 Hz, 700mA, 120V: 0.6A
  • THD: 6.8% at 120V, 12.4% at 277V
  • Power Factor: 99.5% at 120V, 93.6% at 277V
  • Photocell: 120-277V twistlock photocell included. Photocell is compatible with 120-277V.
  • Surge Protection: 2kV

Listings

  • UL Listing: Suitable for wet locations
  • IESNA LM-79 & IESNA LM-80 Testing: RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
  • DLC Listed: This product is listed by Design Lights Consortium (DLC) as an ultra-efficient premium product that qualifies for the highest tier of rebates from DLC Member Utilities. DLC Product Code: PN8ECMXY

LED Characteristics

  • LEDs: Multi-chip, high-output, long-life LED
  • Lifespan: 100,000-hour LED lifespan based on IES LM-80 results and TM-21 calculations
  • Color Stability: LED color temperature is warrantied to shift no more than 200K in CCT over a 5-year period
  • Color Uniformity: RAB's range of CCT (Correlated Color Temperature) follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.

Construction

  • Cold Weather Starting: Minimum starting temperature is -40°C (-40°F)
  • Housing: Precision die-cast aluminum housing and arm
  • Mounting: Mounts on pole
  • Effective Projected Area: EPA = 0.3
  • Recommended Mounting Height: 15 ft
  • Lens: High-impact, frosted polycarbonate lens
  • Reflector: High-reflectance white paint
  • Gaskets: High-temperature silicone
  • Finish: Our environmentally friendly polyester powder coatings are formulated for high-durability and long-lasting color
  • Green Technology: Mercury and UV free. RoHS-compliant components.

Other

  • Patents: The design of YBLED26 is protected by patents pending in US, Canada, China, Taiwan and Mexico
  • Warranty: RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at
  • Equivalency: Equivalent to 150 HPS
  • Buy American Act Compliance: RAB values USA manufacturing! Upon request, RAB may be able to manufacture this product to be compliant with the Buy American Act (BAA). Please contact customer service to request a quote for the product to be made BAA compliant.

Optical

  • BUG Rating: B1 U2 G1

Overview

UPC 01981319744
GTiN 00019813197449
Finish Polyester Powder Coating
Voltage 120/277 Volt
Type ROADWAY
Applications OUTDOOR
Mounting Type Pole
Weight 11.9 lb
Wattage 26 Watt
Color Temperature 3000 K
Color Accuracy 83 CRI
Lumens 3531 lm
Family Brand Name Rab Design Lighting
Lamp Type LED
Fixture Type LED Yard Blaster
Amperage 0.12 Amp
Average Rated Life 100,000 hr
Input Wattage 29.60 W
Power Factor 93.6% At 277V,99.5% At 120V
Efficacy 119.3 LPW
Total Harmonic Distortion 12.4% At 277V,6.8% At 120V
Color Silver
