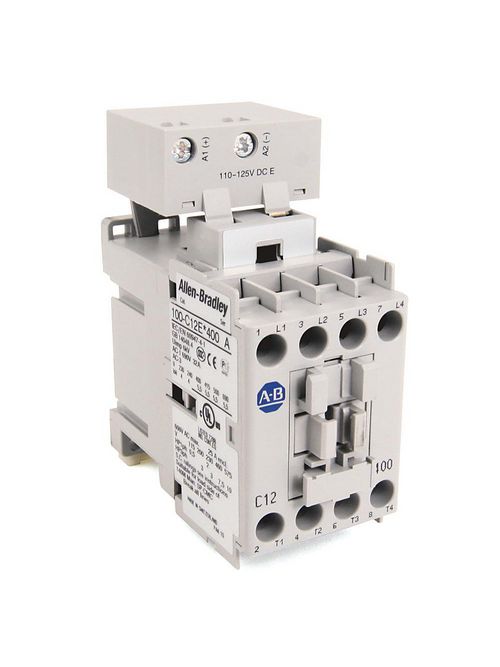

Allen-Bradley 100-C12ED10 12 Amp IEC Contactor
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$214.46/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer AB-MCP
Mfg Catalog # 100-C12ED10
North Coast Part # 1005168

Specifications

  • Connection: Screw Terminals
  • 3-Phase kW (50 Hz) 400V/415V Rating: 5.5
  • 3-Phase kW (50 Hz) 500V Rating: 5.5
  • 3-Phase kW (50 Hz) 690V Rating: 5.5
  • 1-Phase HP (60 Hz) 115V Rating: 0.5
  • 3-Phase HP (60 Hz) 460V Rating: 7.5
  • 3-Phase HP (60 Hz) 575V Rating: 10

Contactor Data

  • Terminal Type: Screw Terminals
  • Rated Operating Current, AC-3: 12A
  • Coil Voltage: 110-125V DC Electronic Coil
  • Coil Termination: Line Side
  • Contact Configuration: 1 N.O. 0 N.C. Auxiliary Contact Configuration
  • Package Quantity: 1

Application Data

  • Electrical Standards: UL

Load Data [Optional]

  • Utilization Category: AC-3 Squirrel-cage motor starting and stopping

Life Data [Optional]

  • Actual Life: Actual Life Cannot be Calculated (more information)...

Terminal Marking Positions Used

  • 100-C or 104-C Contactor: 1_
  • Front Mounted Auxiliary Contact: None
  • Left Side Auxiliary Contact: None
  • Right Side Auxiliary Contact: None
  • Interlock: None

Categories

Overview

UPC 88563024114
Item Long Description IEC 12 A Contactor
GTiN 00885630241142
Type Contactor
Terminal Type Screw Terminals
Conductor Size 16-10 AWG
Mounting Type 35 mm DIN Rail
Connection Type Screw-Type Terminals
Coil Voltage 110 - 125 VDC
Temperature Rating -25 to 60 C
Family Brand Name Allen Bradley
Power Rating 4 kW at 230 V, 5.5 kW at 400/415 V, 5.5 kW at 500 V, 5.5 kW at 690 V
Contact Configuration 3 NO Main, 1 NO Auxiliary
Current 12 A
Blade Dimensions 45 mm L x 80.5 mm W x 105 mm H
Environmental Conditions -55 to 80 C Storage Temperature
Number of Poles 3 Pole
Sub Brand IEC
Standard C-TICK,CCC,KC
