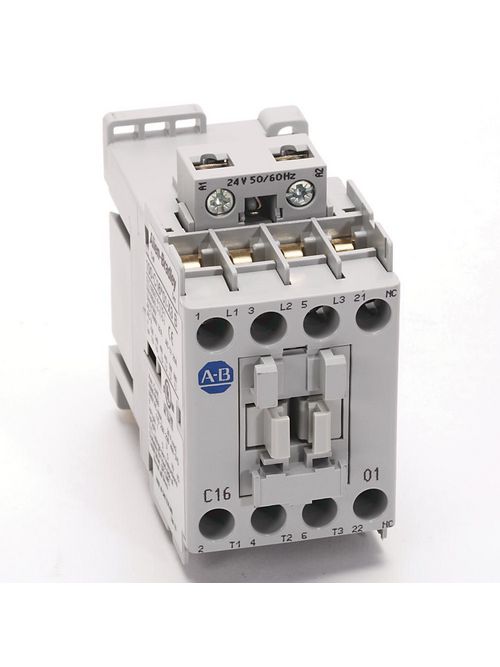

A-B 100-C16K10 IEC 16 A Contactor
Product image thumbnail 0
Product image thumbnail 1
$170.57/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer AB-MCP
Mfg Catalog # 100-C16K10
North Coast Part # 672097

Specifications

  • Connection: Screw Terminals
  • 3-Phase kW (50 Hz) 230V Rating: 5.5
  • 3-Phase kW (50 Hz) 400V/415V Rating: 7.5
  • 3-Phase kW (50 Hz) 500V Rating: 7.5
  • 3-Phase kW (50 Hz) 690V Rating: 7.5
  • 3-Phase HP (60 Hz) 460V Rating: 10
  • 3-Phase HP (60 Hz) 575V Rating: 15

Contactor Data

  • Terminal Type: Screw Terminals
  • Rated Operating Current, AC-3: 16A
  • Coil Voltage: 24V 50Hz
  • Coil Termination: Line Side
  • Contact Configuration: 1 N.O. 0 N.C. Auxiliary Contact Configuration
  • Package Quantity: 1

Application Data

  • Electrical Standards: UL

Load Data [Optional]

  • Utilization Category: AC-3 Squirrel-cage motor starting and stopping

Life Data [Optional]

  • Actual Life: Actual Life Cannot be Calculated (more information)...

Terminal Marking Positions Used

  • 100-C or 104-C Contactor: 1_
  • Front Mounted Auxiliary Contact: None
  • Left Side Auxiliary Contact: None
  • Right Side Auxiliary Contact: None
  • Interlock: None

Overview

UPC 66207259854
GTiN 00662072598542
Type Contactor
Terminal Type Screw Terminals
Connection Type Screw-Type Terminals
Coil Voltage 24 VAC at 50 Hz
Family Brand Name Allen Bradley
Contact Configuration 1 NO
Current 16 A
Sub Brand IEC
Conductor Size 16-10 AWG
Mounting Type 35 mm DIN Rail
Temperature Rating -25 to 60 C
Power Rating 5.5 kW at 230 V, 7.5 kW at 400/415 V, 7.5 kW at 500 V, 7.5 kW at 690 V
Blade Dimensions 45 mm L x 80.5 mm W x 81 mm H
Environmental Conditions -55 to 80 C Storage, IEC 60068-2-27 Resistance To Shock, IEC 60068-2-6 Resistance To Vibration, 2000 NN Per IEC 60947-1 Maximum Altitude Of Installation Site, IEC 60068-2-1/-2/-30 Climatic Withstand
Number of Poles 3 Pole
Standard C-TICK,CCC,KC
