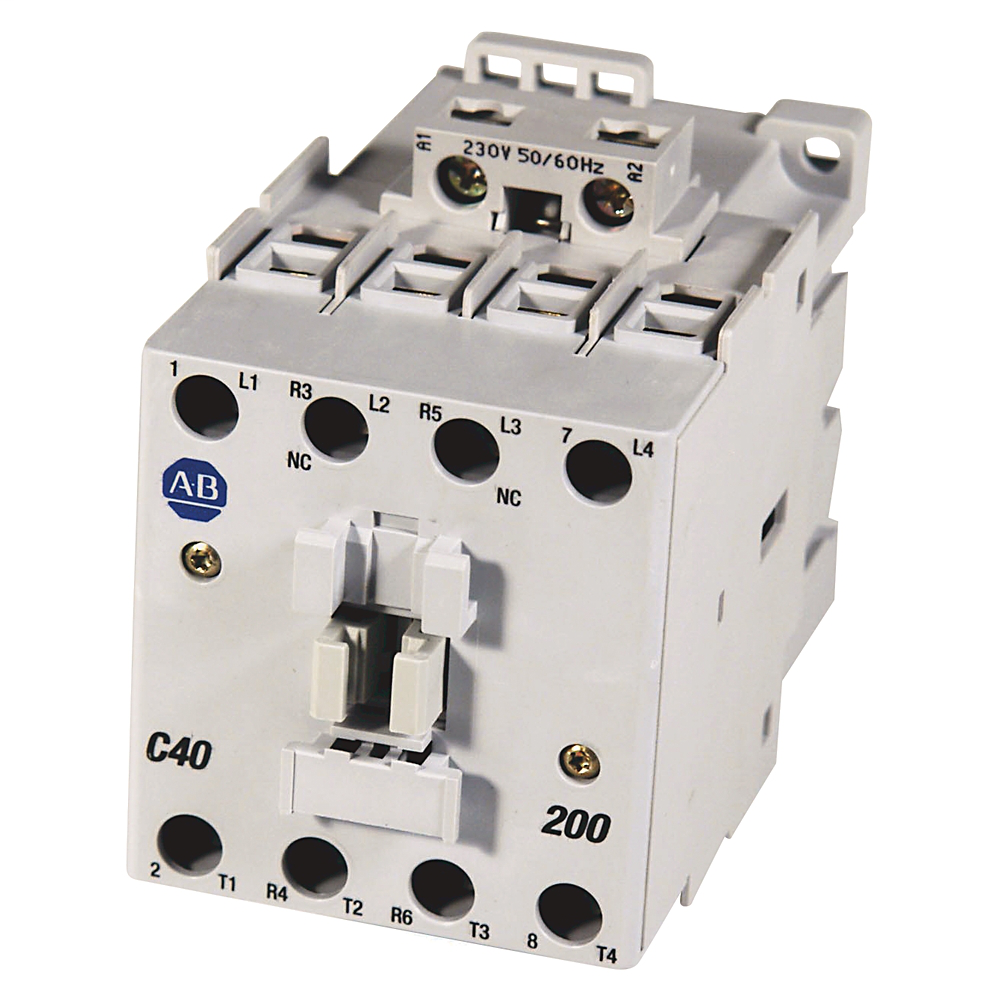

A-B 100-C40EJ200 IEC 40 A Contactor
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$474.81/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer AB-MCP
Mfg Catalog # 100-C40EJ200
North Coast Part # 1827085

Specifications

  • Connection: Screw Terminals
  • 3-Phase kW (50 Hz) 230V Rating: 11
  • 3-Phase kW (50 Hz) 400V/415V Rating: 18.5/20
  • 3-Phase kW (50 Hz) 500V Rating: 20
  • 3-Phase kW (50 Hz) 690V Rating: 18.5
  • 3-Phase HP (60 Hz) 200V Rating: 10
  • 3-Phase HP (60 Hz) 230V Rating: 10
  • 3-Phase HP (60 Hz) 460V Rating: 25
  • 3-Phase HP (60 Hz) 575V Rating: 30

Contactor Data

  • Terminal Type: Screw Terminals
  • Rated Operating Current, AC-3: 37A
  • Coil Voltage: 24V DC Electronic Coil
  • No. of Poles: 4 Poles
  • Coil Termination: Line Side
  • Contact Configuration: 2 N.O. 2 N.C. Main Contact Configuration
  • Package Quantity: 1

Application Data

  • Electrical Standards: UL

Load Data [Optional]

  • Utilization Category: AC-3 Squirrel-cage motor starting and stopping

Life Data [Optional]

  • Actual Life: Actual Life Cannot be Calculated (more information)...

Terminal Marking Positions Used

  • 100-C or 104-C Contactor: None
  • Front Mounted Auxiliary Contact: None
  • Left Side Auxiliary Contact: None
  • Right Side Auxiliary Contact: None
  • Interlock: None

Categories

Overview

UPC 61259851468
Item Long Description IEC 40 A Contactor
GTiN 00612598514687
Type Contactor
Terminal Type Screw Terminals
Conductor Size 14-6 AWG
Mounting Type 35 mm DIN Rail
Connection Type Screw-Type Terminals
Coil Voltage 24 VDC
Temperature Rating -25 to 60 C
Family Brand Name Allen Bradley
Power Rating 11 kW at 230 V, 18.5/20 kW at 400/415 V, 20 kW at 500 V, 18.5 kW at 690 V
Contact Configuration 2 NO, 2 NC Main
Current 37 A
Blade Dimensions 59 mm L x 100.5 mm W x 81 mm H
Environmental Conditions -55 to 80 C Storage Temperature
Number of Poles 4 Pole
Sub Brand IEC
Standard CCC
