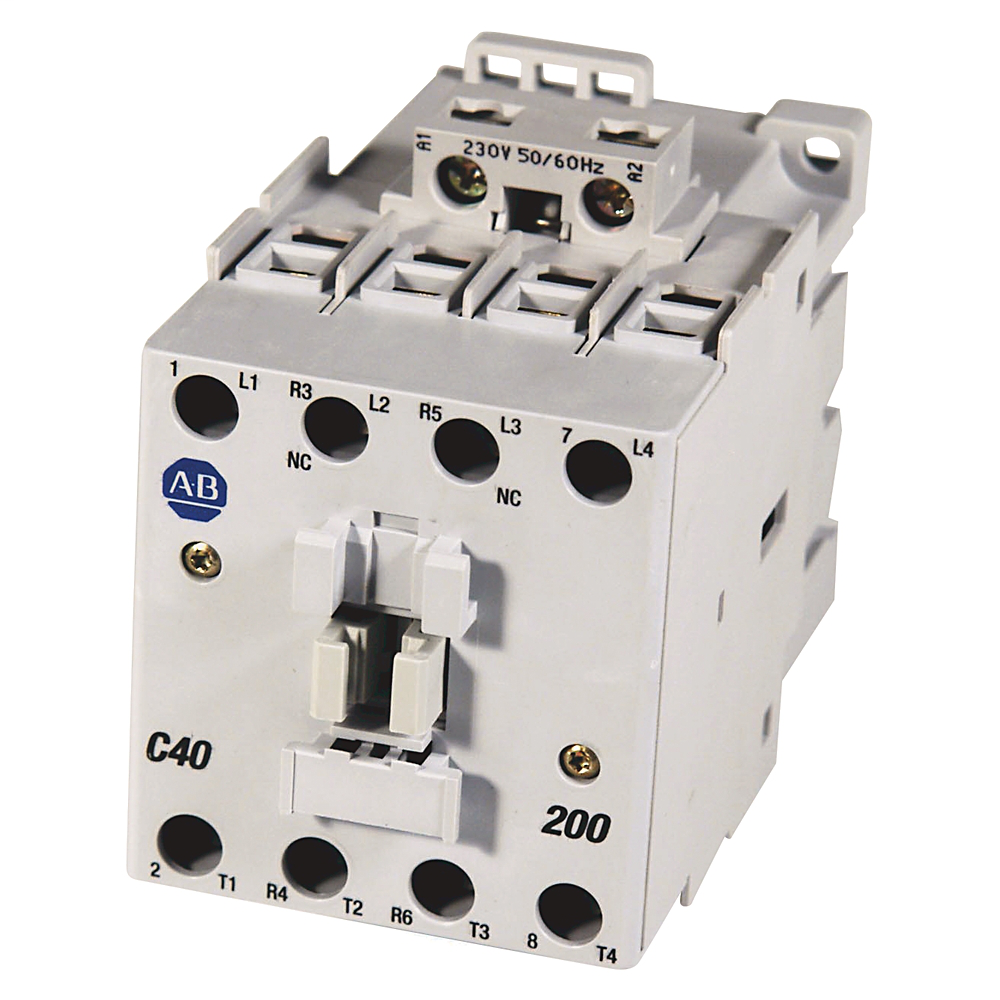

A-B 100-C40J400 IEC 40 A Contactor
$383.00/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Rockwell / Allen Bradley
Mfg Catalog # 100-C40J400
North Coast Part # 676423

Specifications

Contactor Data

  • Terminal Type: Screw Terminals
  • Rated Operating Current, AC-3: 37A
  • Coil Voltage: 24V 60Hz
  • No. of Poles: 4 Poles
  • Coil Termination: Line Side
  • Contact Configuration: 4 N.O. 0 N.C. Main Contact Configuration
  • Package Quantity: 1

Application Data

  • Electrical Standards: UL

Load Data [Optional]

  • Utilization Category: AC-3 Squirrel-cage motor starting and stopping

Life Data [Optional]

  • Actual Life: Actual Life Cannot be Calculated (more information)...

Terminal Marking Positions Used

  • 100-C or 104-C Contactor: None
  • Front Mounted Auxiliary Contact: None
  • Left Side Auxiliary Contact: None
  • Right Side Auxiliary Contact: None
  • Interlock: None

Categories

Overview

UPC 61132081509
GTiN 00611320815092
Type Contactor
Terminal Type Screw Terminals
Coil Voltage 24 VAC at 60 Hz
Family Brand Name Allen Bradley
Contact Configuration 4 NO Main
Current 37 A
Number of Poles 4 Pole
Sub Brand IEC
Conductor Size 14-6 AWG
Mounting Type Panel or 35 mm DIN Rail
Temperature Rating -25 to 60 C
Power Rating 11 kW at 230 V, 18.5/20 kW at 400/415 V, 20 kW at 500 V and 18.5 kW at 690 V
Blade Dimensions 2-21/64 in W x 3-3/16 in H x 3-61/64 in D
Environmental Conditions -55 to 80 deg C Storage Temperature, IEC 60068-2-1/-2/-30 Climatic Withstand, 2000 m Maximum Altitude of Installation Site
Standard C-TICK,CCC,KC
