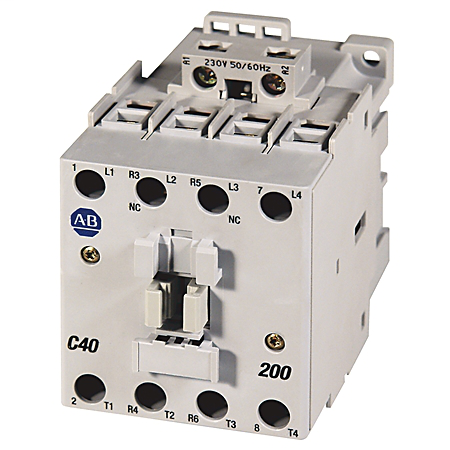

Allen-Bradley 100-C43J00 43 Amp IEC Contactor
$284.00/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Rockwell / Allen Bradley
Mfg Catalog # 100-C43J00
North Coast Part # 762575

Specifications

Contactor Data

  • Terminal Type: Screw Terminals
  • Rated Operating Current, AC-3: 43A
  • Coil Voltage: 24V 60Hz
  • No. of Poles: 3 Poles
  • Coil Termination: Line Side
  • Contact Configuration: 0 N.O. 0 N.C. Auxiliary Contact Configuration
  • Package Quantity: 1

Application Data

  • Electrical Standards: UL

Load Data [Optional]

  • Utilization Category: AC-3 Squirrel-cage motor starting and stopping

Life Data [Optional]

  • Actual Life: Actual Life Cannot be Calculated (more information)...

Terminal Marking Positions Used

  • 100-C or 104-C Contactor: None
  • Front Mounted Auxiliary Contact: None
  • Left Side Auxiliary Contact: None
  • Right Side Auxiliary Contact: None
  • Interlock: None

Overview

UPC 66207261623
GTiN 00662072616239
Type Contactor
Terminal Type Screw Terminals
Conductor Size 14-4 AWG
Mounting Type 35 mm DIN Rail
Coil Voltage 24 VAC at 60 Hz
Temperature Rating -25 to 60 C
Family Brand Name Allen Bradley
Power Rating 13 kW at 230 V, 22 kW at 400/415 V, 25 kW at 500 V, 22 kW at 690 V
Contact Configuration 3 NO Main
Current 43 A
Blade Dimensions 54 mm L x 100.5 mm W x 81 mm H
Environmental Conditions -55 to 80 C Storage Temperature
Number of Poles 3 Pole
Sub Brand IEC
