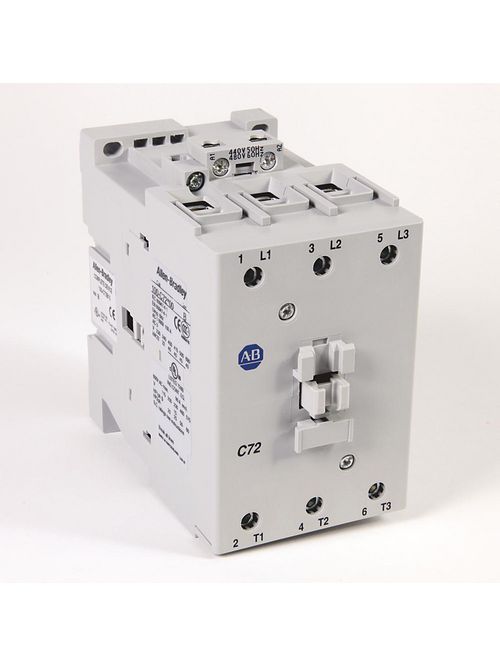

Allen-Bradley 100-C72KF00 72 Amp IEC Contactor
Product image thumbnail 0
Product image thumbnail 1
$403.99/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer AB-MCP
Mfg Catalog # 100-C72KF00
North Coast Part # 1434059

Specifications

  • Connection: Screw Terminals
  • 3-Phase kW (50 Hz) 230V Rating: 22
  • 3-Phase kW (50 Hz) 400V/415V Rating: 40
  • 3-Phase kW (50 Hz) 500V Rating: 45
  • 3-Phase kW (50 Hz) 690V Rating: 40
  • 1-Phase HP (60 Hz) 230V Rating: 15
  • 3-Phase HP (60 Hz) 200V Rating: 20
  • 3-Phase HP (60 Hz) 230V Rating: 25
  • 3-Phase HP (60 Hz) 460V Rating: 50
  • 3-Phase HP (60 Hz) 575V Rating: 60

Contactor Data

  • Terminal Type: Screw Terminals
  • Rated Operating Current, AC-3: 72A
  • Coil Voltage: 230V 50/60Hz
  • No. of Poles: 3 Poles
  • Coil Termination: Line Side
  • Contact Configuration: 0 N.O. 0 N.C. Auxiliary Contact Configuration
  • Package Quantity: 1

Application Data

  • Electrical Standards: UL

Load Data [Optional]

  • Utilization Category: AC-3 Squirrel-cage motor starting and stopping

Life Data [Optional]

  • Actual Life: Actual Life Cannot be Calculated (more information)...

Terminal Marking Positions Used

  • 100-C or 104-C Contactor: None
  • Front Mounted Auxiliary Contact: None
  • Left Side Auxiliary Contact: None
  • Right Side Auxiliary Contact: None
  • Interlock: None

Overview

UPC 66207261782
GTiN 00662072617823
Type Contactor
Terminal Type Screw Terminals
Connection Type Screw-Type Terminals
Coil Voltage 230 VAC at 50/60 Hz
Family Brand Name Allen Bradley
Contact Configuration 3 Normally Open Poles
Current 72 A
Number of Poles 3 Pole
Sub Brand IEC
Conductor Size 14-1 AWG
Mounting Type Panel or 35 mm DIN Rail
Temperature Rating -25 to 60 C
Power Rating 22 kW at 230 V, 40 kW at 400/415 V, 45 kW at 500 V and 40 kW at 690 V
Blade Dimensions 2-53/64 in W x 4-51/64 in H x 4-39/64 in D
Environmental Conditions -55 to 80 deg C Storage Temperature, IEC 60068-2-1/-2/-30 Climatic Withstand, 2000 m Maximum Altitude of Installation Site
Standard CCC,KC
