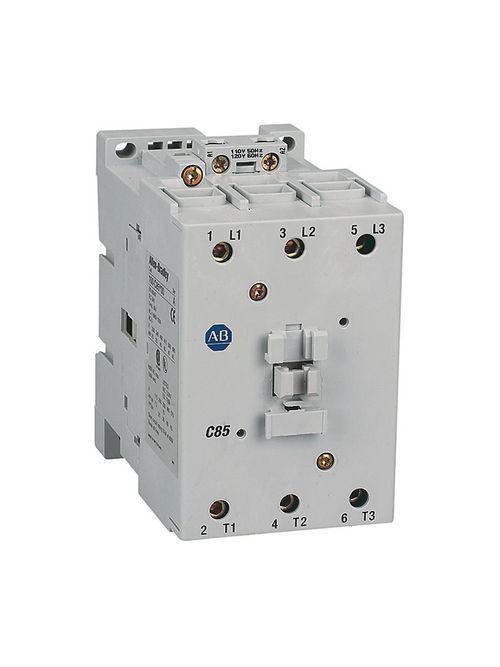

Allen-Bradley 100-C85KD10 85 Amp Contactor

Features

• Provides IP2X finger protection
• Includes space-saving coil-mounted control modules
• Includes electronic and pneumatic timing modules
• Includes built-in surge suppression with DC coils
• Meets IEC, UL, and CSA standards requirements
• RoHs compliant
• Includes reversible coil terminations (line or load side)
• Provides reversible coil terminations (line or load side)
• Offers common accessories for all contactor sizes
• Provides front and side mounting of auxiliary contacts

Specifications

• Connection: Screw Terminals
• 3-Phase kW (50 Hz) 230V Rating: 25
• 3-Phase kW (50 Hz) 400V/415V Rating: 45
• 3-Phase kW (50 Hz) 500V Rating: 55
• 3-Phase kW (50 Hz) 690V Rating: 45
• 1-Phase HP (60 Hz) 115V Rating: 7.5
• 1-Phase HP (60 Hz) 230V Rating: 15
• 3-Phase HP (60 Hz) 200V Rating: 25
• 3-Phase HP (60 Hz) 230V Rating: 30
• 3-Phase HP (60 Hz) 460V Rating: 60
• 3-Phase HP (60 Hz) 575V Rating: 60

Contactor Data

• Terminal Type: Screw Terminals
• Rated Operating Current, AC-3: 85A
• Coil Voltage: 110V 50/60Hz
• No. of Poles: 3 Poles
• Coil Termination: Line Side
• Contact Configuration: 1 N.O. 0 N.C. Auxiliary Contact Configuration
• Package Quantity: 1

Application Data

• Electrical Standards: UL

Load Data [Optional]

• Utilization Category: AC-3 Squirrel-cage motor starting and stopping

Life Data [Optional]

• Actual Life: Actual Life Cannot be Calculated (more information)...

Terminal Marking Positions Used

• 100-C or 104-C Contactor: 1_
• Front Mounted Auxiliary Contact: None
• Left Side Auxiliary Contact: None
• Right Side Auxiliary Contact: None
• Interlock: None
