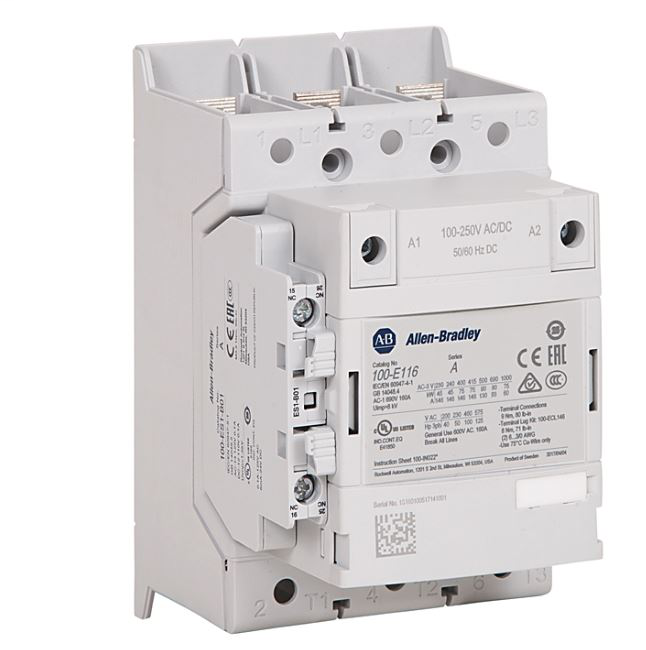

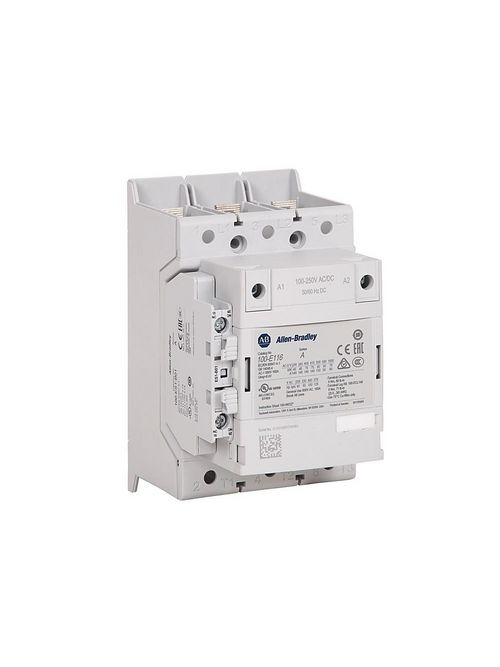

A-B 100-E146KN11 IEC 146 A Contacto
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$887.78/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer AB-MCP
Mfg Catalog # 100-E146KN11
North Coast Part # 1826000

Specifications

System Voltage Data

  • Phases: Three Phase

Contactor Data

  • BulletinNo: 100-E MCS-E Contactor
  • Contactor Size: 146A, AC3 duty
  • Coil Type: Electronic Coil
  • Control Voltage: 250-500V 50/60Hz / 250-500V DC Electronic Coil
  • Auxiliary Contact Configuration: 1 N.O. 1 N.C.
  • Terminal Type: Bar Connections

Features

  • Includes built-in surge suppression
  • Meets IEC, UL, and CSA standards requirements
  • Complies with RoHs
  • Simplifies selection with electronic wide-range AC/DC coils
  • Saves energy with low power consumption
  • Available integrated PLC interface

Categories

Overview

UPC 88950853505
Item Long Description IEC 146 A Contactor
GTiN 00889508535050
Type MCS-E, AC3 Duty
Coil Voltage 250 - 500 VAC/VDC
Control Voltage 250-500 V
Family Brand Name Allen Bradley
Number of Phases 3 Phase
Contact Configuration 1 NO, 1 NC
Sub Brand IEC
Mounting Type Panel or 35 mm DIN Rail
Temperature Rating -40 to 70 C
Power Rating 45 kW at 220 - 240 V, 75 kW at 380 - 400 V, 415 V, 1000 V, 90 kW at 440 V, 500 V, 690 V
Blade Dimensions 90 mm W x 126 mm D x 150 mm H
Number of Poles 3 Pole
