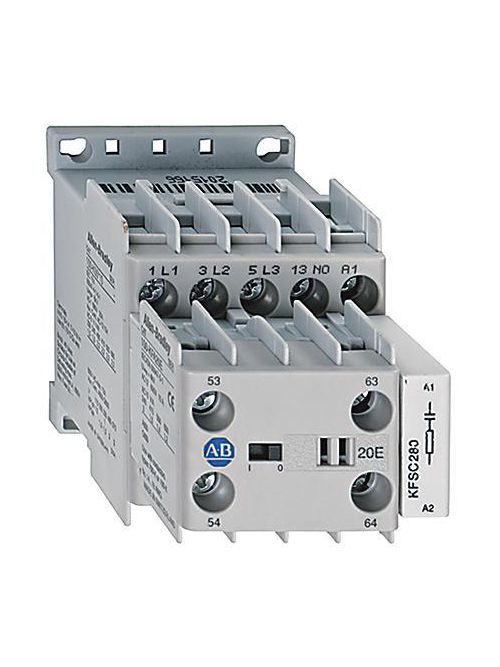

Allen-Bradley 100-KR05DJ01 5 Amp IEC Miniature Contactor
$163.00/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Rockwell / Allen Bradley
Mfg Catalog # 100-KR05DJ01
North Coast Part # 1608439

Features

  • Optional integrated surge suppressor
  • Compatible with Bulletin 193-K bimetallic overload relay
  • IP2X finger protection
  • Mirror contacts per IEC 60947-4-1 and mechanically linked contacts per IEC 60947-5-1 on main unit
  • Full-voltage non-reversing and reversing contactors
  • Compact size
  • Same dimensions for AC and DC

Specifications

Contactor Data

  • Terminal Type: Spring Clamp Terminals
  • Rated Operating Current: 5 A
  • Control Voltage: 24 (17...30)V DC Diode
  • No. of Poles: 3 Poles
  • Main Contact Configuration: 3 N.O.
  • Auxiliary Contact Configuration: 1 N.C.
  • Package Quantity: 1
  • Connection: Spring Clamp Terminals
  • Contactor Size: 5 A
  • 3-Phase kW (50 Hz) 230V Rating: 1.5
  • 3-Phase kW (50 Hz) 400V/415V Rating: 2.2
  • 3-Phase kW (50 Hz) 500V Rating: 2.2
  • 3-Phase kW (50 Hz) 690V Rating: 2.2
  • 1-Phase HP (60 Hz) 115V Rating: 0.33
  • 1-Phase HP (60 Hz) 230V Rating: 0.75
  • 3-Phase HP (60 Hz) 200V Rating: 1.5
  • 3-Phase HP (60 Hz) 230V Rating: 1.5
  • Coil Voltage: 24 (17...30)V DC Diode

Overview

UPC 66207451215
GTiN 00662074512157
Type Miniature
Terminal Type Spring Clamp Terminals
Connection Type Spring Clamp Terminals
Coil Voltage 24 VDC
Control Voltage 24 V
Family Brand Name Allen Bradley
Contact Configuration 1 NC Auxiliary
Current 5 A
Contact Rating 5 A
Number of Poles 3 Pole
Sub Brand IEC
Contactor Size 5 A
Conductor Size 18-12 AWG
Mounting Type Panel or 35 mm DIN Rail
Temperature Rating -25 to 60 C
Power Rating 1.5 kW at 230 V, 2.2 kW at 400/415 V, 500 V and 690 V
Blade Dimensions 1-29/64 in W x 3-7/64 in D x 1-31/32 in H
Environmental Conditions -55 to 80 deg C Storage Temperature, IEC 60068-2-30 Climatic Withstand, 2000 NN m, per IEC60947-4 Maximum Altitude of Installation Site
