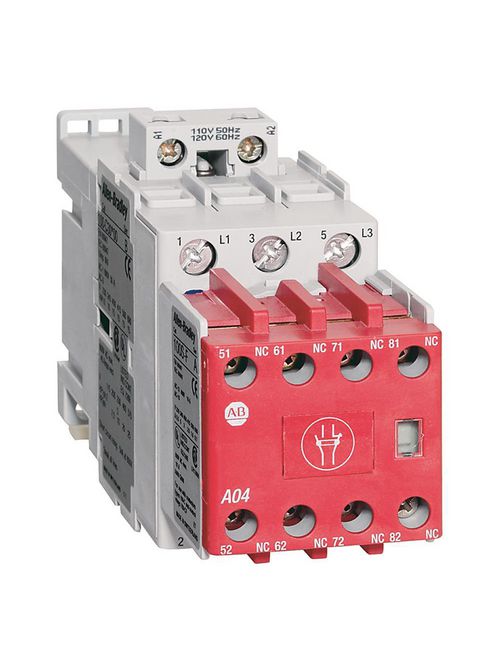

Allen-Bradley 100S-C09KD14C 9 Amp Safety Contactor
Product image thumbnail 0
Product image thumbnail 1
$218.45/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer AB-MCP
Mfg Catalog # 100S-C09KD14C
North Coast Part # 605095

Specifications

  • Contact Configuration: 1 N.O. 4 N.C.
  • Special Features: Standard Contact

Contactor Data

  • Rated Operating Current, AC-3: 9A
  • Coil Voltage: 110V 50/60Hz
  • No. of Power Poles: 3 N.O.
  • Coil Termination: Line Side
  • Auxiliary Contact Configuration: 1 N.O. 4 N.C.
  • Auxiliary Contact Type: Standard Contact

Overview

UPC 61132035605
GTiN 00611320356052
Type Standard
Coil Voltage 110 VAC at 50/60 Hz
Family Brand Name Allen Bradley
Contact Configuration 1 NO, 4 NC Auxiliary
Current 9 A
Contact Rating 9 A
Conductor Size 16-10 AWG
Temperature Rating -25 to 60 C
Power Rating 3 kW at 230 V, 4 kW at 400/415 V, 4 kW at 500 V, 4 kW at 690 V
Blade Dimensions 45 mm L x 119.5 mm W x 81 mm H
Environmental Conditions -55 to 80 C Storage, IEC 60068-2-27 Resistance To Shock, IEC 60068-2-6 Resistance To Vibration, 2000 NN Per IEC 60947-1 Maximum Altitude Of Installation Site, IEC 60068-2-1/-2/-30 Climatic Withstand
Number of Poles 3 Pole
Standard CCC,CE,CUL,KC,UL
