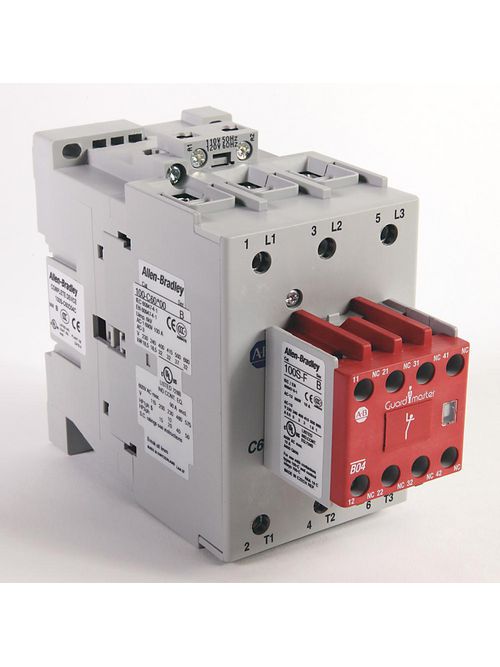

Allen Bradley 100S-C60DJ14BC 60 Amp Safety Contactor
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$619.45/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer AB-MCP
Mfg Catalog # 100S-C60DJ14BC
North Coast Part # 762815

Features

  • Includes red contact housing for easy identification
  • Reduces drop-out time to 18-23ms, a reduction of up to 50% compared to standard electronic coils
  • Offers a complete range of accessories
  • Provides AC and DC operating coils

Specifications

  • Contact Configuration: 1 N.O. 4 N.C.
  • Special Features: Bifurcated Contact
  • 3-Phase kW (50 Hz) 230V Rating: 18.5
  • 3-Phase kW (50 Hz) 400V/415V Rating: 32
  • 3-Phase kW (50 Hz) 500V Rating: 37
  • 3-Phase kW (50 Hz) 690V Rating: 32
  • 1-Phase HP (60 Hz) 230V Rating: 10
  • 3-Phase HP (60 Hz) 200V Rating: 15
  • 3-Phase HP (60 Hz) 230V Rating: 20
  • 3-Phase HP (60 Hz) 460V Rating: 40
  • 3-Phase HP (60 Hz) 575V Rating: 50

Contactor Data

  • Rated Operating Current, AC-3: 60A
  • Coil Voltage: 24V DC w/ Integrated Diode
  • No. of Power Poles: 3 N.O.
  • Coil Termination: Line Side
  • Auxiliary Contact Configuration: 1 N.O. 4 N.C.
  • Auxiliary Contact Type: Bifurcated Contact

Categories

Overview

UPC 78118094487
Item Long Description 60 A Safety Contactor
GTiN 00781180944871
Type Safety Contactor
Coil Voltage 24 V
Family Brand Name Allen Bradley
Power Rating 32 kW
Contact Configuration 1 NO, 4 NC Auxiliary
Current 60 A
Contact Rating 60 A
Used With DIN Installation Panels
Voltage 230-690 VAC at 50 Hz, 115-575 VAC at 60 Hz
Standard CCC,CE,CUL,KC,UL
