Allen-Bradley 100S-D300ED22C 300 Amp MCS D Safety Contactor

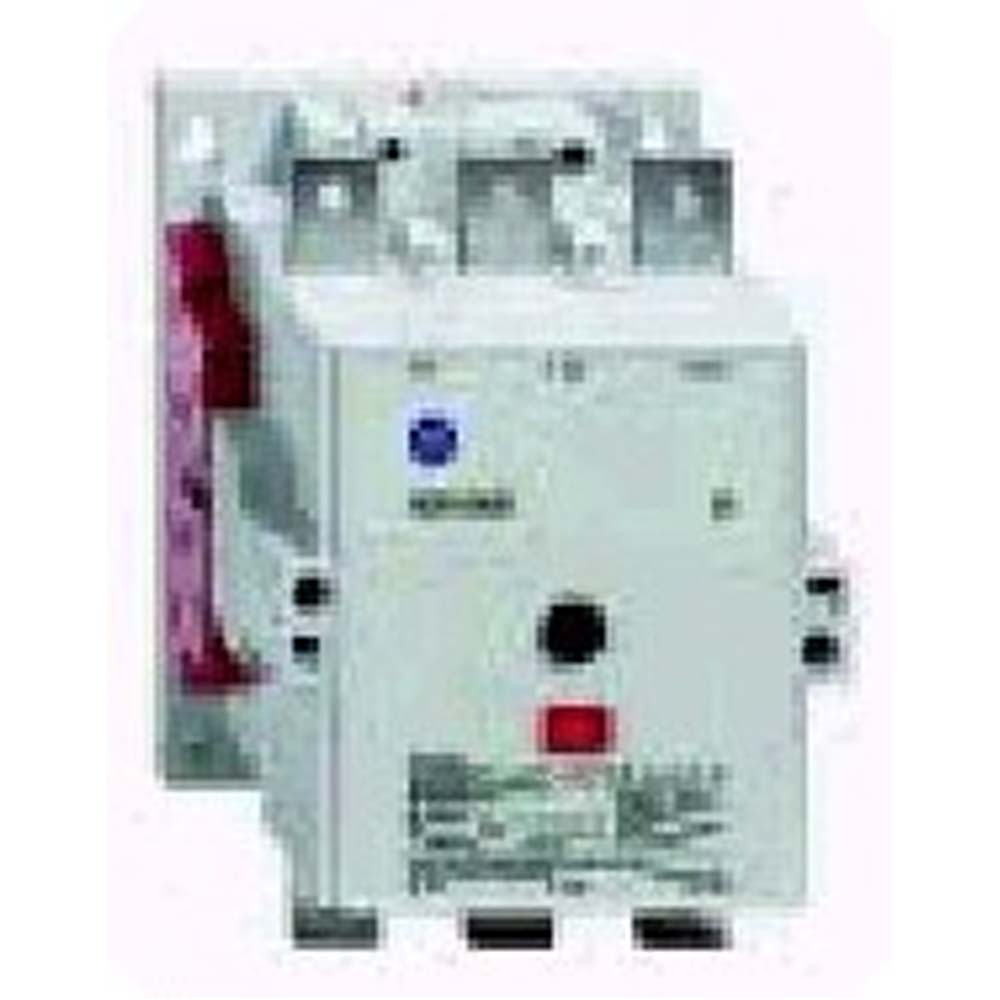

Product image thumbnail 0

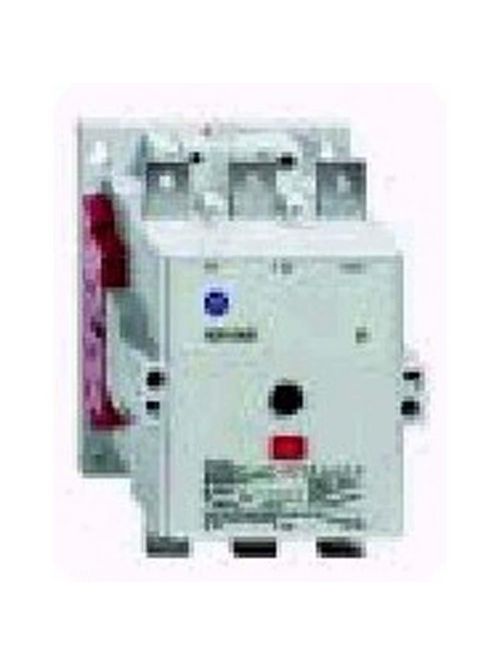

Product image thumbnail 1
$2,760.00/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer AB-MCP
Mfg Catalog # 100S-D300ED22C
North Coast Part # 669629

Specifications

  • Coil Voltage: 110-130V 50/60Hz / 100-130V DC Electr. Coil with Elec. Interface

System Voltage Data

  • Phases: Three Phase

Contactor Data

  • Rated Operating Current, AC-3: 300 A
  • Coil Type: Electronic Coil w/ Electronic Interface
  • Control Voltage: 110-130 50/60Hz
  • Auxiliary Contact Configuration: 2 N.O. 2 N.C.

Overview

UPC 78118047323
GTiN 00781180473234
Type MCS D
Standard C-TICK,CCC
Coil Voltage 110 - 130 VAC at 50/60 Hz
Control Voltage 110/130 V
Family Brand Name Allen Bradley
Number of Phases 3 Phase
Current 300 A
Conductor Size (2) 4 AWG - 350 MCM
Temperature Rating -25 to 60 C
Power Rating 90 kW at 230 V, 170 kW at 400 V, 160 kW at 415 V, 290 kW at 500 V, 300 kW at 690 V, 160 kW at 1000 V
Contact Configuration 2 NO, 2 NC Auxiliary
Blade Dimensions 155 mm W x 205 mm H x 180 mm D
Environmental Conditions -40 to 80 C Storage, IEC 60068-2-30 Climatic Withstand, 2000 NN m, per IEC60947-4 Maximum Altitude of Installation Site
Number of Poles 3 Pole
