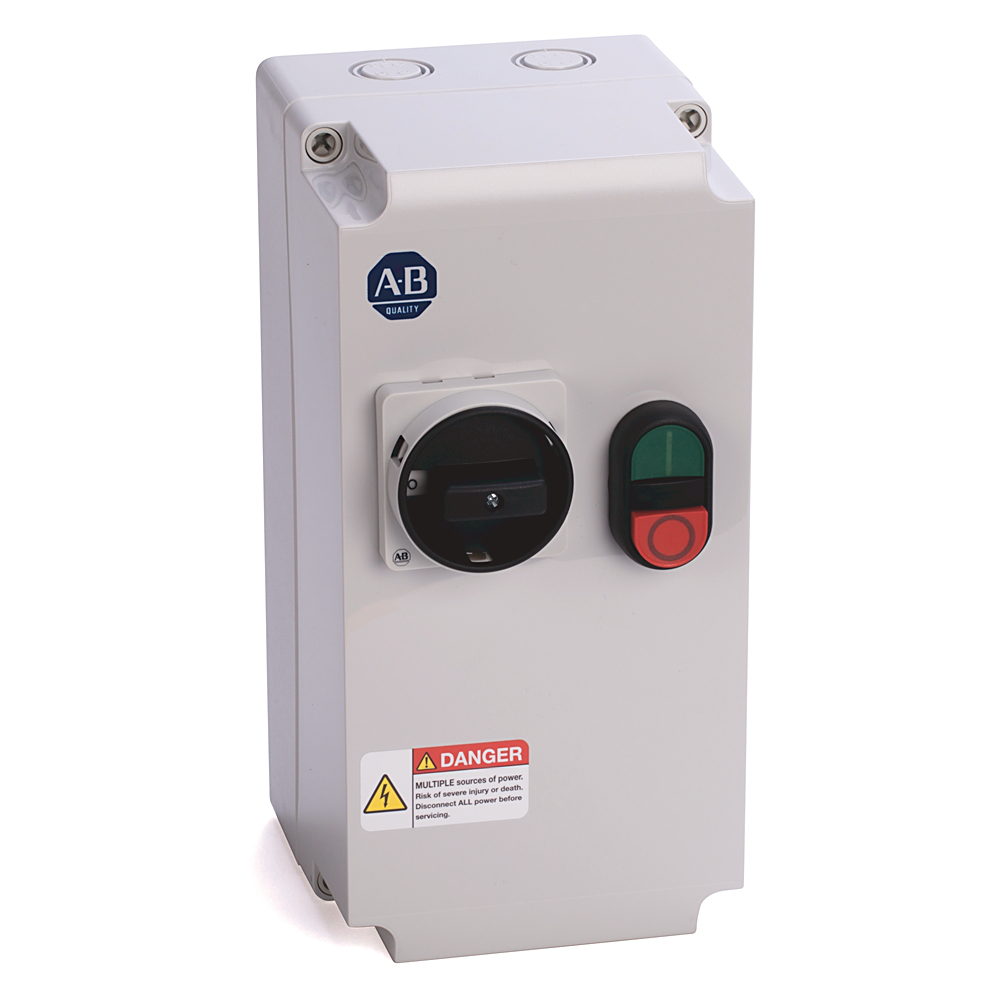

Allen-Bradley 103C-09LD-CB40X-1M Enclosed Starter, 2.5 - 4 A, 110V 50Hz / 120V 60Hz Control Voltage, Start-Stop (Multi-Function Button)
$758.00/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Rockwell / Allen Bradley
Mfg Catalog # 103C-09LD-CB40X-1M
North Coast Part # 1019401

Specifications

  • Setting Range (A): 2.5...4.0
  • IEC Coordinated Breaking Capacity (400/415V AC) Type 1 [kA]: 50
  • IEC Coordinated Breaking Capacity (400/415V AC) Type 2 [kA]: 50
  • IEC Coordinated Breaking Capacity (500V AC) Type 1 [kA]: 50
  • Output Current, kW (500V AC): 2.2
  • UL508 Coordinated Breaking Capacity (480V) Type 1 [kA]: 65
  • UL508 Coordinated Breaking Capacity (600V) Type 1 [kA]: 30
  • ControlVoltage_CoilCode: 110V 50Hz / 120V 60Hz
  • Output Current, kW (400/415V AC): 1.5
  • Max. HP (200V) 3-Phase: 3/4
  • Max. HP (230V) 3-Phase: 3/4

General Starter Data

  • Short Circuit Coordination: Type 1
  • Enclosure: Type 1/4/4X/12 - IP66 Plastic - Large (indoor/Outdoor Use)

Control Circuit Data

  • Contactor Size: 100-C09

Circuit Breaker Data

  • Frame Size: 140M-C2E (C-Frame), High Break
  • Thermal Current Range (A): 2.5 - 4 A

Options

  • Modifications: Start-Stop (Multi-Function Button)

Categories

Overview

UPC 88495167180
GTiN 00884951671805
Type Enclosed, Direct-On-Line, Compact, Combination
Family Brand Name Allen Bradley
Enclosure Type Raintight, Dusttight, Corrosion-Resistant
Output Current 1.5 A
Power Supply 110V 50 Hz / 120V 60 Hz
Contactor Size 100-C09
Material Molded Plastic
Applications For Indoor/Outdoor use
Coil Voltage 110 VAC at 50 Hz, 120 VAC at 60 Hz
Blade Dimensions 125 mm W x 125 mm D x 250 mm H
Current 9 A
