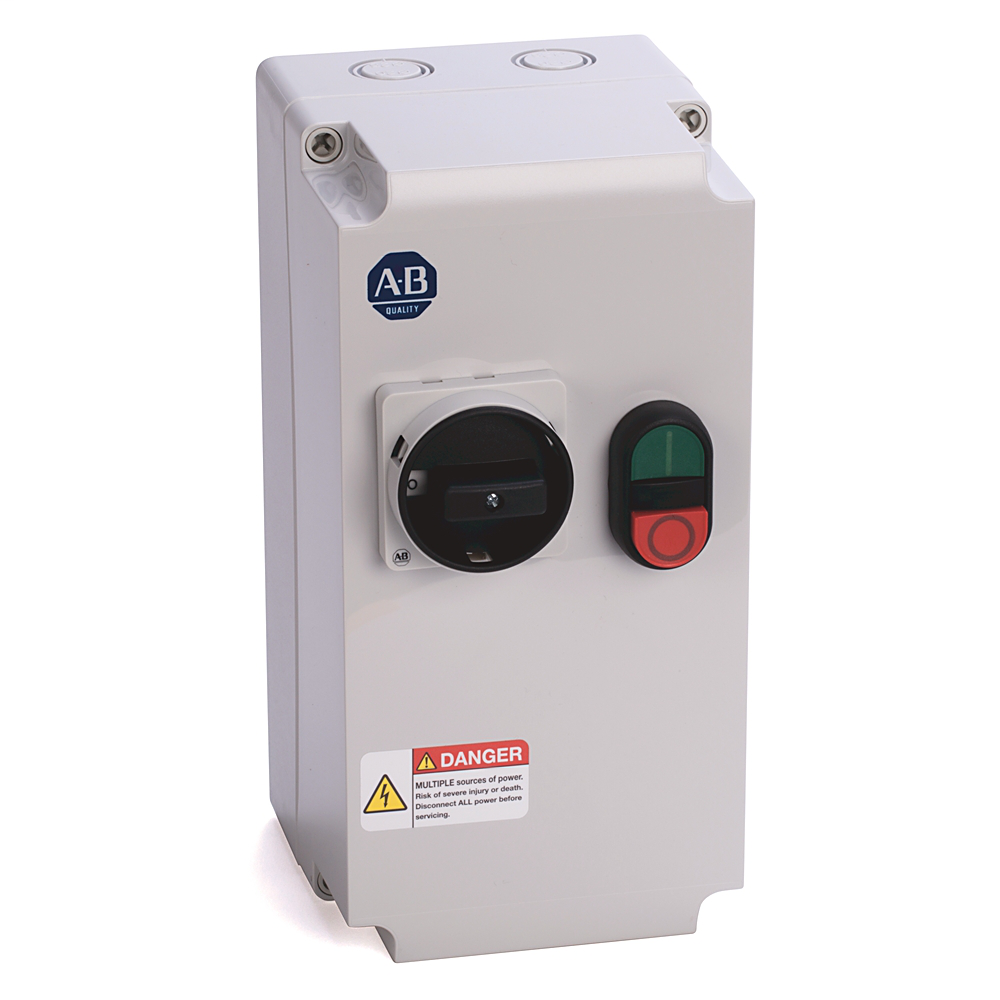

A-B 103C-09LEJ-CC10X-1M Enclosed 6.
Product image thumbnail 0
Product image thumbnail 1
$774.06/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer AB-CPB
Mfg Catalog # 103C-09LEJ-CC10X-1M
North Coast Part # 996419

Specifications

  • Setting Range (A): 6.3...10
  • IEC Coordinated Breaking Capacity (400/415V AC) Type 1 [kA]: 65
  • IEC Coordinated Breaking Capacity (400/415V AC) Type 2 [kA]: 50
  • IEC Coordinated Breaking Capacity (500V AC) Type 1 [kA]: 50
  • UL508 Coordinated Breaking Capacity (480V) Type 1 [kA]: 65
  • ControlVoltage_CoilCode: 24V DC Electronic Coil

General Starter Data

  • Short Circuit Coordination: Type 1
  • Enclosure: Type 1/4/4X/12 - IP66 Plastic - Large (indoor/Outdoor Use)

Control Circuit Data

  • Contactor Size: 100-C09
  • Coil Voltage: 24V DC Electronic Coil

Circuit Breaker Data

  • Frame Size: 140M-C2E (C-Frame), High Break
  • Thermal Current Range (A): 6.3 - 10 A

Options

  • Modifications: Start-Stop (Multi-Function Button)

Categories

Overview

UPC 88717230565
Item Long Description C Comb DOL Starter, 6.3 - 10 A, IEC Enclosed, Type 4/4X/12 - IP66 Plastic -L, 9 A, 140M-C2E High Break, 24VDC, START-STOP Multifunction PB
GTiN 00887172305658
Type C Comb DOL Starter
Coil Voltage 24 V
Family Brand Name Allen Bradley
Enclosure Type Type 4/4X/12 - IP66 Plastic -L
Power Supply 24VDC
Contactor Size 100-C09
Current 9 A
