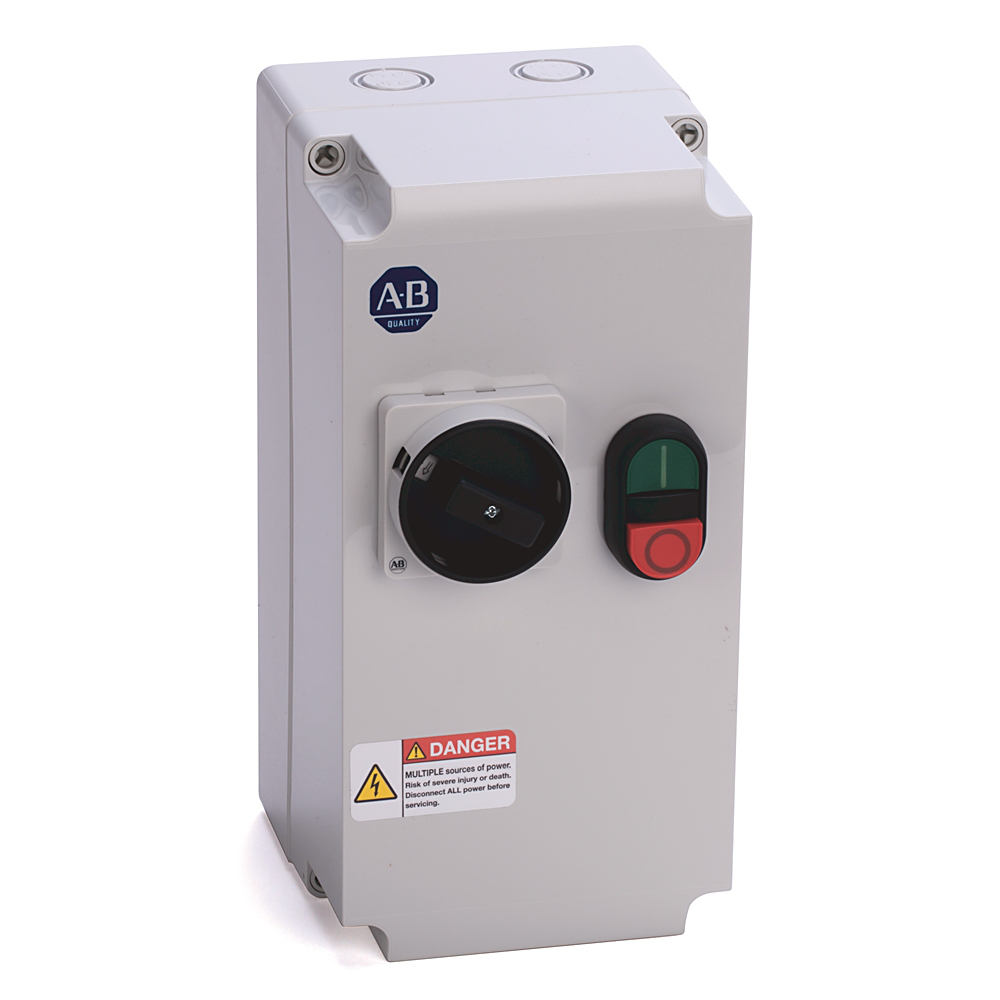

A-B 103C-12LB-CC16X-1M Enclosed 10
$826.93/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer AB-CPB
Mfg Catalog # 103C-12LB-CC16X-1M
North Coast Part # 1835082

Specifications

  • Setting Range (A): 10...16
  • IEC Coordinated Breaking Capacity (400/415V AC) Type 1 [kA]: 50
  • IEC Coordinated Breaking Capacity (400/415V AC) Type 2 [kA]: 50
  • IEC Coordinated Breaking Capacity (500V AC) Type 1 [kA]: 10
  • Output Current, kW (500V AC): 10
  • UL508 Coordinated Breaking Capacity (480V) Type 1 [kA]: 30
  • ControlVoltage_CoilCode: 440V 50Hz / 480V 60Hz
  • Output Current, kW (400/415V AC): 7.5
  • Max. HP (460V) 3-Phase: 10

General Starter Data

  • Short Circuit Coordination: Type 1
  • Enclosure: Type 1/4/4X/12 - IP66 Plastic - Large (indoor/Outdoor Use)

Control Circuit Data

  • Contactor Size: 100-C12

Circuit Breaker Data

  • Frame Size: 140M-C2E (C-Frame), High Break
  • Thermal Current Range (A): 10 - 16 A

Options

  • Modifications: Start-Stop (Multi-Function Button)

Overview

UPC 88495166974
GTiN 00884951669741
Type Enclosed, Direct-On-Line, Compact, Combination
Family Brand Name Allen Bradley
Enclosure Type Raintight, Dusttight, Corrosion-Resistant
Output Current 10 A
Power Supply 440V 50 Hz / 480V 60 Hz
Contactor Size 100-C12
Material Molded Plastic
Applications For Indoor/Outdoor use
Coil Voltage 440 VAC at 50 Hz, 480 VAC at 60 Hz
Blade Dimensions 125 mm W x 125 mm D x 250 mm H
Current 12 A
