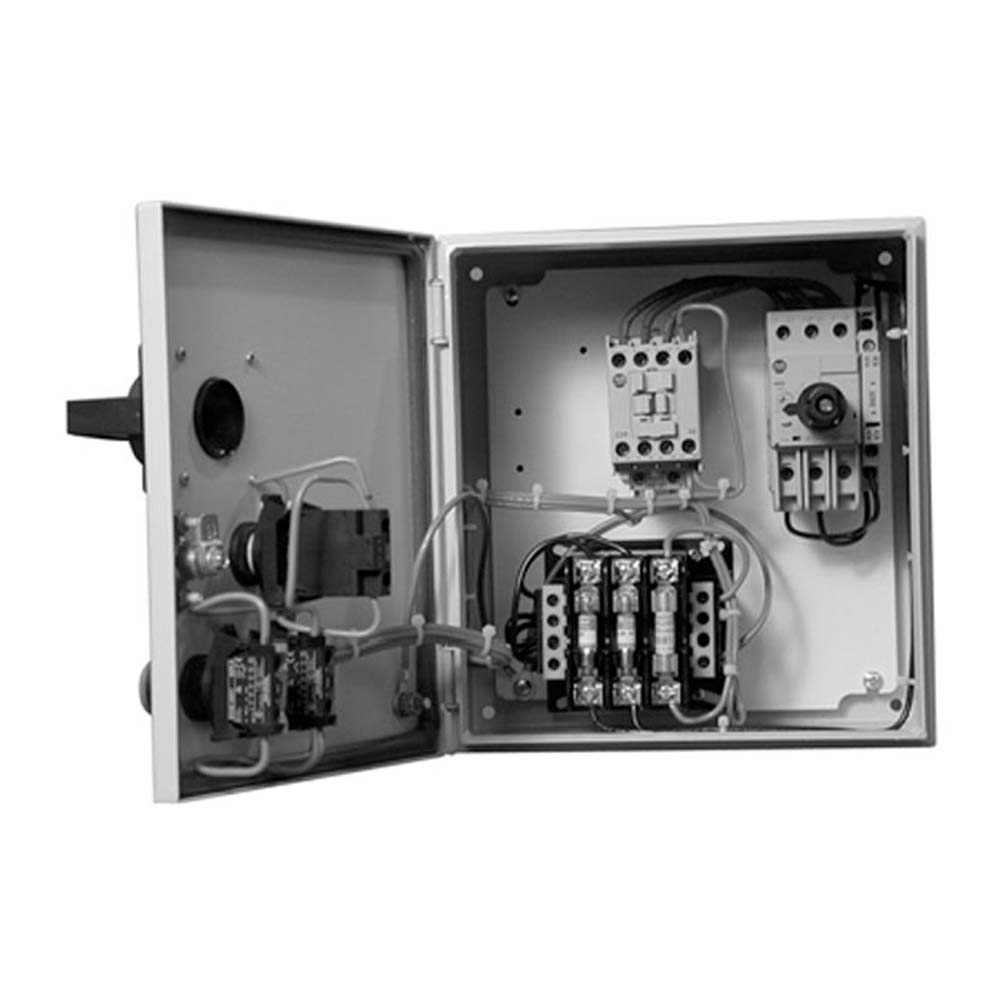

A-B 103H-EFBD2-DB63X-1-4R-6P-A20 IE
Product image thumbnail 0
Product image thumbnail 1
$2,193.50/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Allen-Bradley / Rockwell
Mfg Catalog # 103H-EFBD2-DB63X-1-4R-6P-A20
North Coast Part # 885903

Specifications

  • Enclosure: NEMA Type 3/4/12 - IP66 (Metal)
  • Type: 103H - Enclosed Compact Combination Starter, Non-Reversing

Assembly

  • Factory or User Assembled?: Factory Assembled

System Voltage Data

  • Supply Voltage: 480V 60Hz

General Starter Data

  • Short Circuit Coordination: Type 1
  • Enclosure Type: NEMA Type 3/4/12 - IP66 (Metal)
  • Starter Type: 103H - Enclosed Compact Combination Starter, Non-Reversing

Control Circuit Data

  • Contactor Size: 100-C30
  • Contactor Auxiliary Contacts: 1 N.O.

Circuit Breaker Data

  • Frame Size: 140M-D8E (D-Frame), High Break Plus
  • Thermal Current Range (A): 4 - 6.3 A

Options

  • Modifications: (1) 2 N.O.

Categories

Overview

GTiN 00885630103617
Type H Comb Motor Ctlr
Family Brand Name Allen Bradley
NEMA 12,3,4
Enclosure Type Size C Enclosure
Power Supply 120V AC 60 Hz
IP Rating IP66
Start Type 103H - Enclosed Compact Combination Starter, Non-Reversing
Sub Brand IEC Enclosed
Contactor Size 100-C30
Product UPC 88563010361
Voltage 120 Volt
