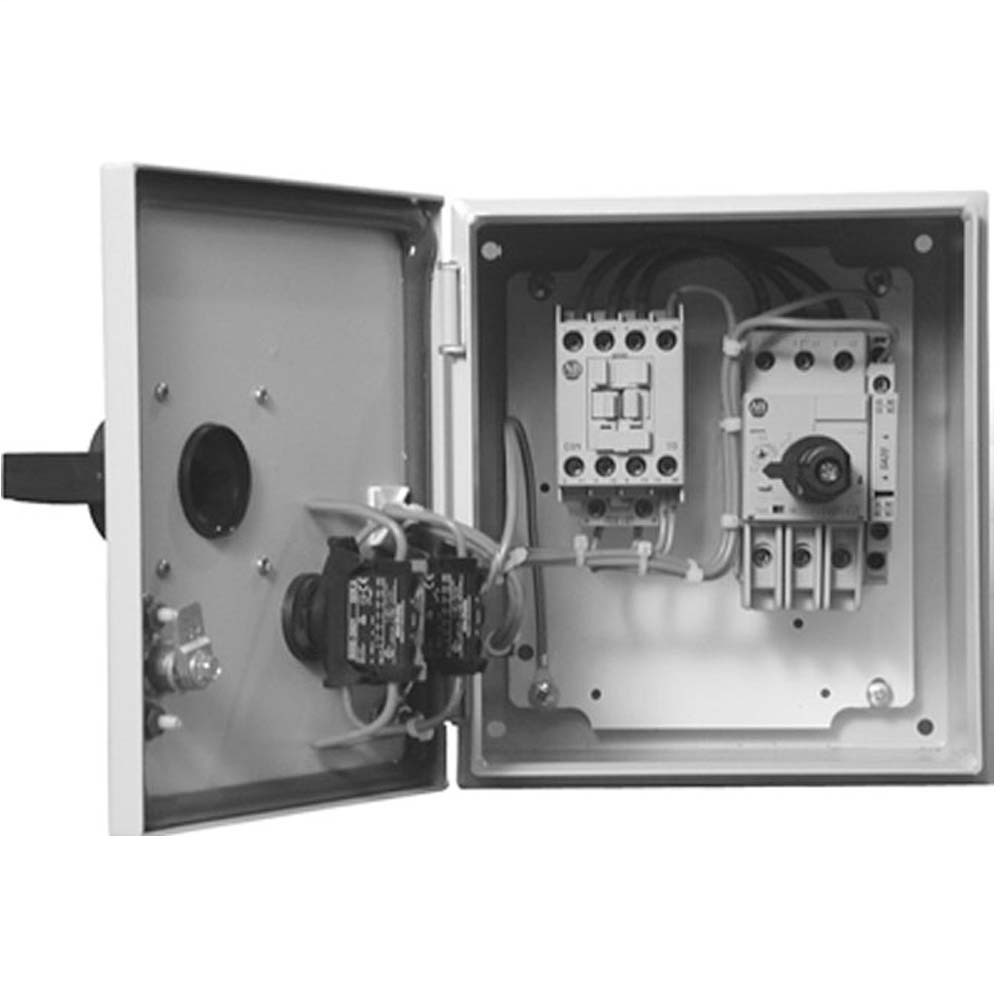

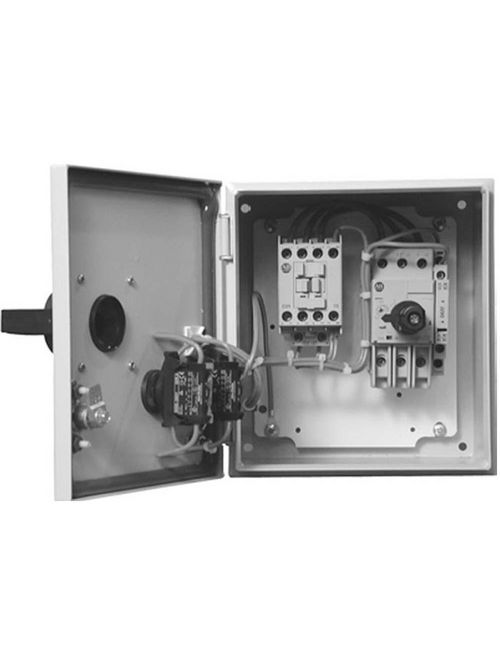

Allen Bradley 103H-FFBD2-FC32X IEC Enclosed Combination Motor Controller

Specifications

• Enclosure: NEMA Type 3/4/12 - IP66 (Metal)
• Type: 103H - Enclosed Compact Combination Starter, Non-Reversing
• Motor Current Adjustment Range (A): 23.0...32.0
• Max. Hp, 60 Hz (200V): 7-1/2...10
• Max. Hp, 60 Hz (230V): 10
• Max. Hp, 60 Hz (460V): 20...25
• Max. Hp, 60 Hz (575V): 30
• Max. Short-Circuit Current (kA) Type 1 (480Y/277V): 65
• Max. Short-Circuit Current (kA) Type 1 (600Y/347V): 30
• Max. Short-Circuit Current (kA) Type 2 (480Y/277V): 65
• Max. Short-Circuit Current (kA) Type 2 (600Y/347V): 10

Assembly

• Factory or User Assembled?: Factory Assembled

System Voltage Data

• Supply Voltage: 480V 60Hz

General Starter Data

• Short Circuit Coordination: Type 1
• Enclosure Type: NEMA Type 3/4/12 - IP66 (Metal)
• Starter Type: 103H - Enclosed Compact Combination Starter, Non-Reversing

Control Circuit Data

• Contactor Size: 100-C37
• Contactor Auxiliary Contacts: 1 N.O.

Circuit Breaker Data

• Frame Size: 140M-F8E (F-Frame), High Break Plus
• Thermal Current Range (A): 27 - 32
