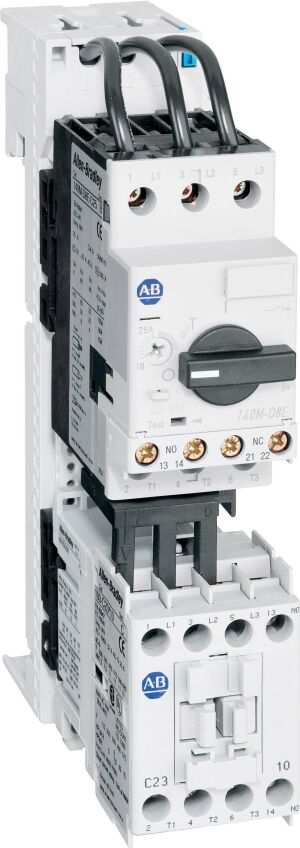

Allen-Bradley 103S-CWD2-DC16C-KN IEC Combination Starter, 100-C16, 110V 50Hz / 120V 60Hz, 1 N.O. 0 N.C., 140M-D8E (D-Frame), High Break Plus, Internal Auxiliary Contact 1 N.O. + 1 N.C., No Side Mount Aux. or Trip Contacts
$684.29/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer AB-CPB
Mfg Catalog # 103S-CWD2-DC16C-KN
North Coast Part # 1611041

Features

  • Non-reversing (Bulletin 190E) and reversing (Bulletin 191E)
  • Non-reversing (Bulletin 190S) and reversing (Bulletin 191S)
  • cULus Listed Type F Combination Motor Controllers Type 1 & 2 Coordination
  • Non-reversing (Bulletin 103) and reversing (Bulletin 107)

Specifications

  • Motor Current Adjustment Range (A): 10.0...16.0
  • Max. Fuse or Circuit Breaker per NEC [A]: 450
  • Max. kW, 50 Hz (500V): 7.5
  • Max. Hp, 60 Hz (460V): 7-1/2...10
  • Max. Hp, 60 Hz (575V): 10
  • Max. kW, 50 Hz (400V): 7.5
  • Max. Hp, 60 Hz (200V): 3...5

General Starter Data

  • Short Circuit Coordination: Type 1
  • Starter Type: Direct On-Line Starter with Circuit Breaker
  • Style: Mounting Modules

Control Circuit Data

  • Contactor Size: 100-C16
  • Auxiliary Contacts: 1 N.O. 0 N.C.

Circuit Breaker Data

  • Frame Size: 140M-D8E (D-Frame), High Break Plus
  • Thermal Current Range (A): 10 - 16 A
  • Auxiliary Contacts: Internal Auxiliary Contact 1 N.O. + 1 N.C.
  • Side Mount Aux. or Trip Contacts: No Side Mount Aux. or Trip Contacts

Options

  • Optional Selections: Lockable Twist Knob Black

Manufacturing

  • Assembly: Factory Assembled

Overview

UPC 78118079314
GTiN 00781180793141
Style Mounting Modules
Family Brand Name Allen Bradley
Start Type Direct On-Line Starter With Circuit Breaker
Contactor Size 100-C16
Type Direct-On-Line, Non-Reversing, Combination
Mounting Type 141A Panel Mounting Module
Coil Voltage 110 VAC at 50 Hz, 120 VAC at 60 Hz
Enclosure Type Open
Contact Configuration 1 NO Auxiliary
Blade Dimensions 45 mm W x 228 mm H
