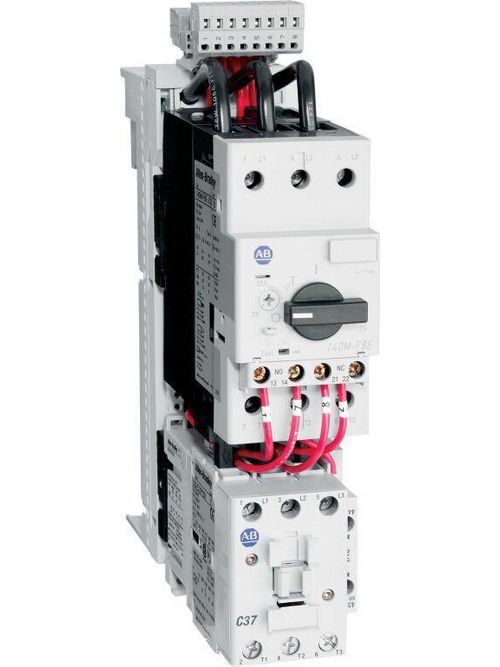

Allen-Bradley 103S-FTD2-FC32C IEC Combination Starter, 100-C37, 110V 50Hz / 120V 60Hz, 1 N.O. 0 N.C., 140M-F8E (F-Frame), High Break Plus, Internal Auxiliary Contact 1 N.O. + 1 N.C., No Side Mount Aux. or Trip Contacts
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$1,056.35/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer AB-CPB
Mfg Catalog # 103S-FTD2-FC32C
North Coast Part # 1834641

Specifications

General Starter Data

  • Short Circuit Coordination: Type 1
  • Starter Type: Direct On-Line Starter with Circuit Breaker
  • Style: Standard Busbar System

Control Circuit Data

  • Contactor Size: 100-C37
  • Auxiliary Contacts: 1 N.O. 0 N.C.

Circuit Breaker Data

  • Frame Size: 140M-F8E (F-Frame), High Break Plus
  • Thermal Current Range (A): 23 - 32
  • Auxiliary Contacts: Internal Auxiliary Contact 1 N.O. + 1 N.C.
  • Side Mount Aux. or Trip Contacts: No Side Mount Aux. or Trip Contacts

Manufacturing

  • Assembly: Factory Assembled

Categories

Overview

UPC 78118046655
Item Long Description 23-32 A Combination Starter
GTiN 00781180466557
Style Standard Busbar System
Family Brand Name Allen Bradley
Start Type Direct On-Line Starter With Circuit Breaker
Contactor Size 100-C37
Type Non-Reversing, Combination
Mounting Type 141A Standard Busbar
Control Voltage 110 V at 50 Hz, 120 V at 60 Hz
Enclosure Type Open
Contact Configuration 1 NO Auxiliary
Blade Dimensions 54 mm W x 213 mm H
