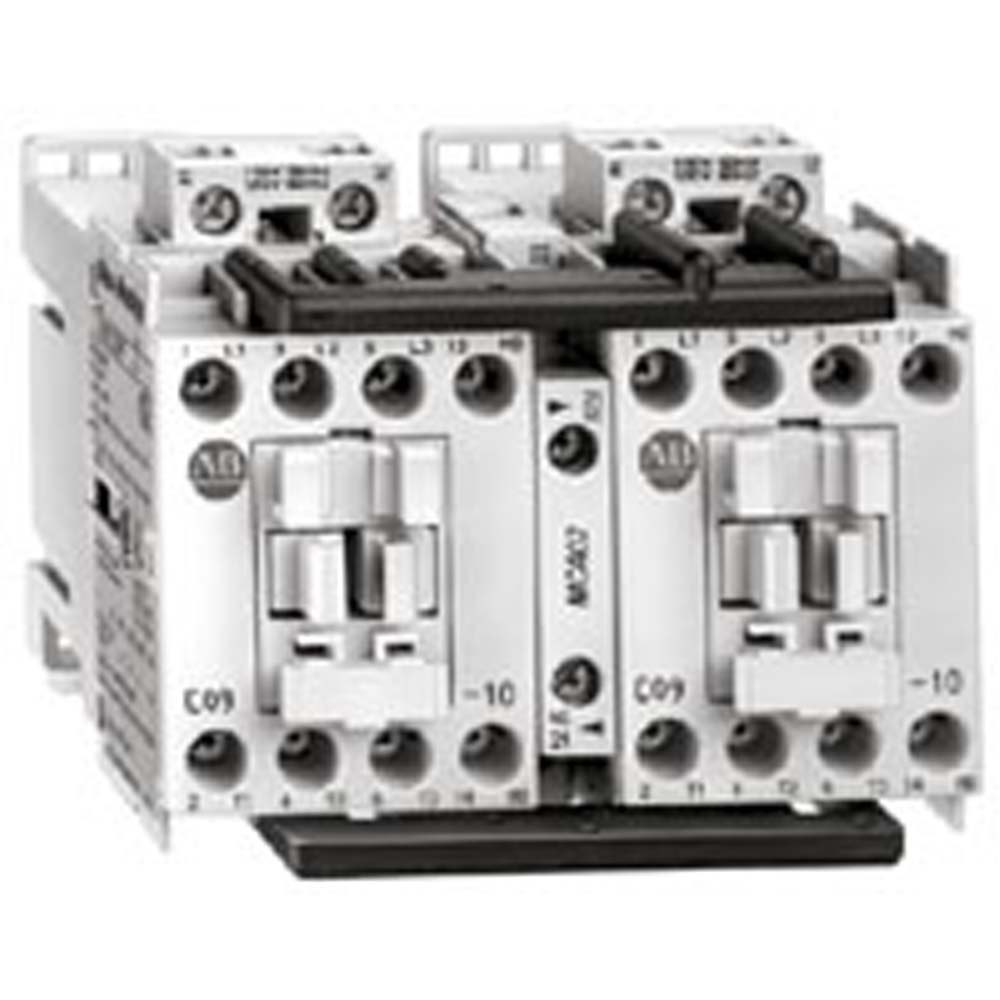

Allen-Bradley 104-C09J22 9 Amp IEC Reversing Contactor

Features

• Includes built-in surge suppression with DC coils
• Includes electronic and pneumatic timing modules
• Provides front and side mounting of auxiliary contacts
• Includes reversible coil terminations (line or load side)
• Provides reversible coil terminations (line or load side)
• RoHs compliant
• Offers common accessories for all contactor sizes
• Provides IP2X finger protection
• Meets IEC, UL, and CSA standards requirements
• Includes space-saving coil-mounted control modules

Specifications

• Connection: Screw Terminals
• 1-Phase HP (60 Hz) 115V Rating: 0.5
• 1-Phase HP (60 Hz) 230V Rating: 1.5
• 3-Phase HP (60 Hz) 575V Rating: 7.5

Assembly

• Factory or User Assembled?: Factory Assembled

Contactor Data

• Terminal Type: Screw Terminals
• Rated Operating Current, AC-3: 9A
• Coil Voltage: 24V 60Hz
• Coil Termination: Line Side
• Auxiliary Contact Configuration: 1 N.O. 1 N.C.

Application Data

• Electrical Standards: UL

Load Data [Optional]

• Utilization Category: AC-3 Squirrel-cage motor starting and stopping

Life Data [Optional]

• Actual Life: Actual Life Cannot be Calculated (more information)...

Additional Information

• Notice: See Pub. 0100C-1.0.1 for additional electrical life information.

Terminal Marking Positions Used

• 100-C or 104-C Contactor: 1_
• Front Mounted Auxiliary Contact: None
• Front Mounted Auxiliary Contact (Right Side if 104C): None
• Left Side Auxiliary Contact: None
• Right Side Auxiliary Contact: None
• Interlock: 2_
