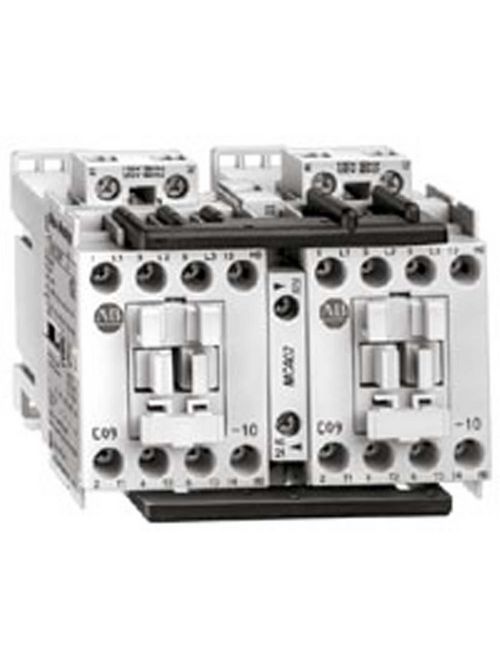

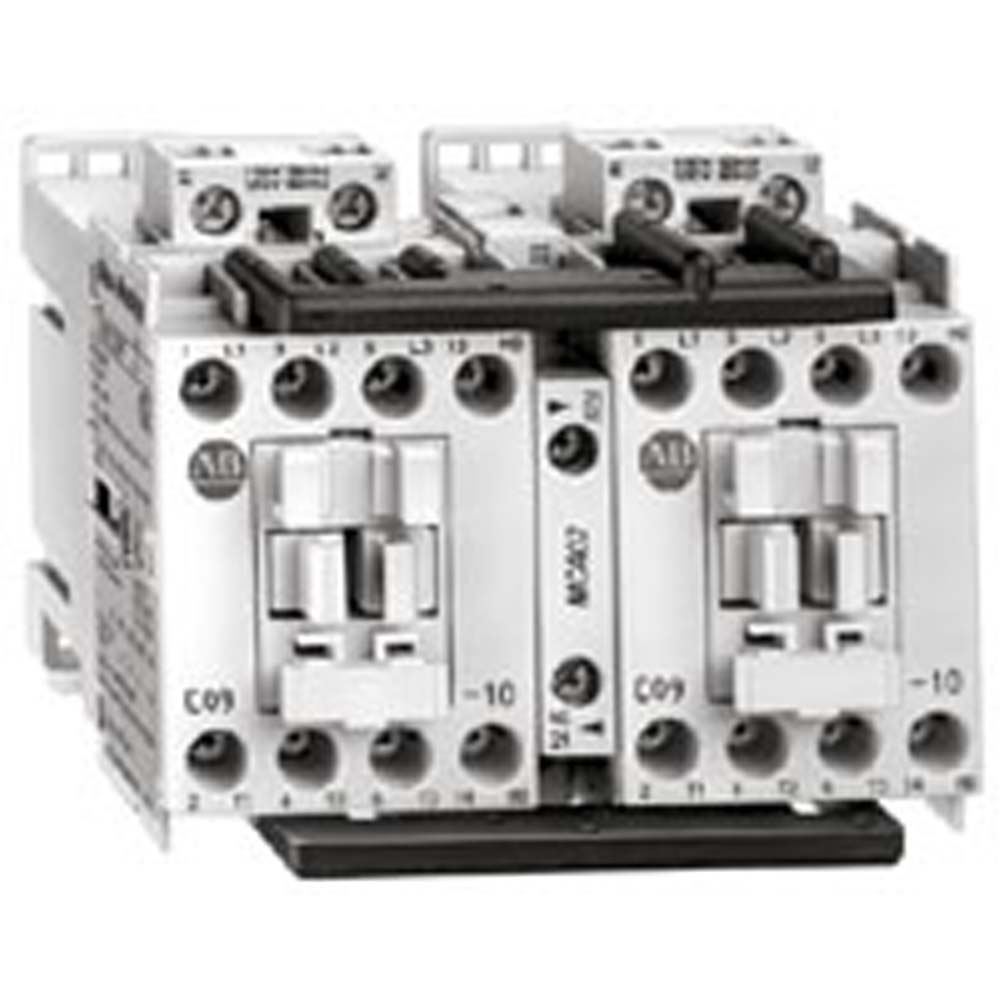

Allen-Bradley 104-C23B22 23 Amp IEC Reversing Contactor
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$484.79/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer AB-MCP
Mfg Catalog # 104-C23B22
North Coast Part # 673231

Specifications

Assembly

  • Factory or User Assembled?: Factory Assembled

Contactor Data

  • Terminal Type: Screw Terminals
  • Rated Operating Current, AC-3: 23A
  • Coil Termination: Line Side
  • Auxiliary Contact Configuration: 1 N.O. 1 N.C.

Application Data

  • Electrical Standards: UL

Load Data [Optional]

  • Utilization Category: AC-3 Squirrel-cage motor starting and stopping

Life Data [Optional]

  • Actual Life: Actual Life Cannot be Calculated (more information)...

Additional Information

  • Notice: See Pub. 0100C-1.0.1 for additional electrical life information.

Terminal Marking Positions Used

  • 100-C or 104-C Contactor: 1_
  • Front Mounted Auxiliary Contact: None
  • Front Mounted Auxiliary Contact (Right Side if 104C): None
  • Left Side Auxiliary Contact: None
  • Right Side Auxiliary Contact: None
  • Interlock: 2_

Categories

Overview

UPC 61132013187
Item Long Description IEC 23 A Reversing Contactor
GTiN 00611320131871
Type Reversing
Terminal Type Screw Terminals
Coil Voltage 440 VAC at 50 Hz, 480 VAC at 60 Hz
Family Brand Name Allen Bradley
TC Connection Screw Terminals
Contact Configuration 1 NO, 1 NC Auxiliary
Current 23 A
Sub Brand IEC
Conductor Size 16 - 10 AWG
Mounting Type Panel or 35 mm DIN Rail
Temperature Rating -25 to 60 C
Power Rating 7.5 kW at 230 V, 11 kW at 400/415 V, 13 kW at 500 V and 10 kW at 690 V
Blade Dimensions 1-25/32 in W x 3-3/16 in H x 3-11/64 in D
Environmental Conditions -55 to 80 C Storage, IEC 60068-2-1/-2/-30 Climatic Withstand, 2000 m NN, per IEC60947-1 Maximum Altitude of Installation Site
Standard C-TICK,CCC,KC
Connection Type Screw Terminals
