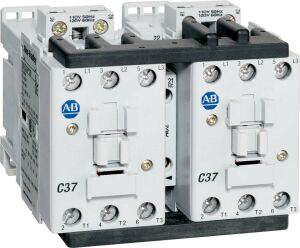

Allen-Bradley 104-C30J22 30 Amp IEC Reversing Contactor
$591.00/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Rockwell / Allen Bradley
Mfg Catalog # 104-C30J22
North Coast Part # 267

Specifications

Assembly

  • Factory or User Assembled?: Factory Assembled

Contactor Data

  • Terminal Type: Screw Terminals
  • Rated Operating Current, AC-3: 30A
  • Coil Voltage: 24V 60Hz
  • Coil Termination: Line Side
  • Auxiliary Contact Configuration: 1 N.O. 1 N.C.

Application Data

  • Electrical Standards: UL

Load Data [Optional]

  • Utilization Category: AC-3 Squirrel-cage motor starting and stopping

Life Data [Optional]

  • Actual Life: Actual Life Cannot be Calculated (more information)...

Additional Information

  • Notice: See Pub. 0100C-1.0.1 for additional electrical life information.

Terminal Marking Positions Used

  • 100-C or 104-C Contactor: 1_, 4_
  • Front Mounted Auxiliary Contact: None
  • Front Mounted Auxiliary Contact (Right Side if 104C): None
  • Left Side Auxiliary Contact: None
  • Right Side Auxiliary Contact: None
  • Interlock: 2_

Categories

Overview

UPC 66207207265
GTiN 00662072072653
Type Reversing
Terminal Type Screw Terminals
Coil Voltage 24 VAC at 60 Hz
Family Brand Name Allen Bradley
TC Connection Screw Terminals
Contact Configuration 1 NO, 1 NC Auxiliary
Current 30 A
Sub Brand IEC
Conductor Size 14 - 4 AWG
Mounting Type Panel or 35 mm DIN Rail
Temperature Rating -25 to 60 C
Power Rating 10 kW at 230 V, 15 kW at 400/415/500/690 V
Blade Dimensions 1-25/32 in W x 3-3/16 in H x 4 in D
Environmental Conditions -55 to 80 C Storage, IEC 60068-2-1/-2/-30 Climatic Withstand, 2000 m NN, per IEC60947-1 Maximum Altitude of Installation Site
Standard C-TICK,CCC,KC
Connection Type Screw Terminals
