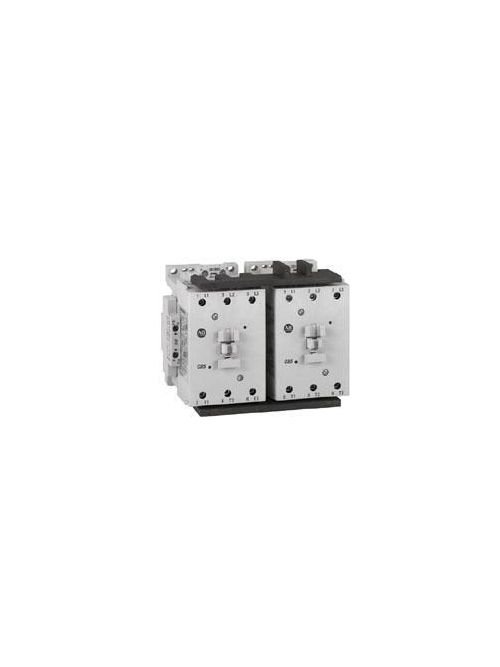

A-B 104-C85DJ22 IEC 85 A Reversing
$1,472.00/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Rockwell / Allen Bradley
Mfg Catalog # 104-C85DJ22
North Coast Part # 665962

Specifications

Assembly

  • Factory or User Assembled?: Factory Assembled

Contactor Data

  • Terminal Type: Screw Terminals
  • Rated Operating Current, AC-3: 85A
  • Coil Voltage: 24V DC w/ Integrated Diode
  • Coil Termination: Line Side
  • Auxiliary Contact Configuration: 1 N.O. 1 N.C.

Application Data

  • Electrical Standards: UL

Load Data [Optional]

  • Utilization Category: AC-3 Squirrel-cage motor starting and stopping

Life Data [Optional]

  • Actual Life: Actual Life Cannot be Calculated (more information)...

Additional Information

  • Notice: See Pub. 0100C-1.0.1 for additional electrical life information.

Terminal Marking Positions Used

  • 100-C or 104-C Contactor: 1_, 4_
  • Front Mounted Auxiliary Contact: None
  • Front Mounted Auxiliary Contact (Right Side if 104C): None
  • Left Side Auxiliary Contact: None
  • Right Side Auxiliary Contact: None
  • Interlock: 2_

Overview

UPC 66246891736
GTiN 00662468917360
Type Reversing Contactor
Terminal Type Screw Terminals
Coil Voltage 24 VDC
Family Brand Name Allen Bradley
TC Connection Screw Terminals
Contact Configuration 1 NO, 1 NC Auxiliary
Current 85 A
Sub Brand IEC
Conductor Size 14-1 AWG
Mounting Type 35 mm DIN Rail
Temperature Rating -25 to 60 C
Power Rating 25 kW at 230 V, 45 kW at 400/415 V, 55 kW at 500 V, 45 kW at 690 V
Environmental Conditions -55 to 80 C Storage, IEC 60068-2-27 Resistance To Shock, IEC 60068-2-6 Resistance To Vibration, 2000 NN Per IEC 60947-1 Maximum Altitude Of Installation Site, IEC 60068-2-1/-2/-30 Climatic Withstand
