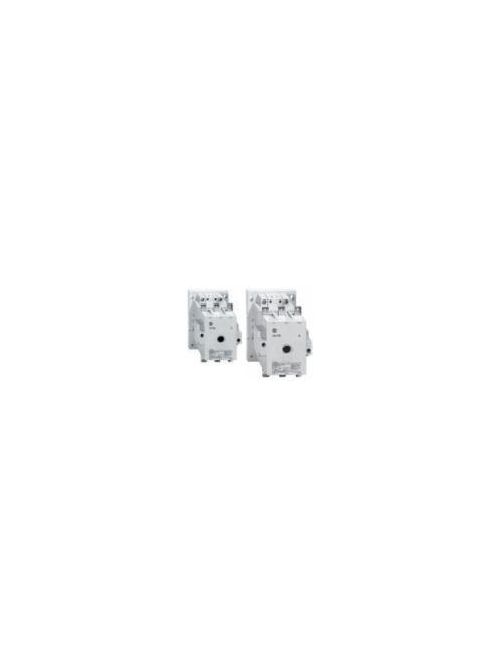

Allen-Bradley 104-D180A24 MCS 104-D Reversing Contactor, IEC, 180 A, 240V 60Hz
$4,060.00/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer AB-MCP
Mfg Catalog # 104-D180A24
North Coast Part # 1494792

Features

  • Meets IEC, UL, and CSA standards requirements
  • Complies with RoHs
  • Includes space-saving coil-mounted control modules
  • Includes built-in surge suppression
  • Provides front and side mounting of auxiliary contacts
  • Available integrated PLC interface
  • Offers common accessories for all contactor sizes
  • Provides IP2X finger protection
  • Includes reversible coil terminations (line or load side)
  • Includes electronic and pneumatic timing modules
  • RoHs compliant
  • Provides reversible coil terminations (line or load side)
  • Reduces drop-out time to 18-23ms, a reduction of up to 50% compared to standard electronic coils
  • Simplifies selection with electronic wide-range AC/DC coils
  • Saves energy with low power consumption

Specifications

Assembly

  • Factory or User Assembled?: Factory Assembled
  • Coil Code: 220-230V 50Hz / 240V 60Hz
  • 3-Phase kW (50 Hz) 230V Rating: 57
  • 3-Phase kW (50 Hz) 400V Rating: 101
  • 3-Phase kW (50 Hz) 415V Rating: 105
  • 3-Phase kW (50 Hz) 500V Rating: 100
  • 3-Phase kW (50 Hz) 690V Rating: 135
  • 3-Phase kW (50 Hz) 1000V Rating: 90
  • 3-Phase HP (60 Hz) 200V Rating: 50
  • 3-Phase HP (60 Hz) 230V Rating: 60
  • 3-Phase HP (60 Hz) 460V Rating: 150
  • 3-Phase HP (60 Hz) 575V Rating: 150

System Voltage Data

  • Phases: Three Phase

Contactor Data

  • Rated Operating Current: 180 A
  • Coil Type: Conventional Coil
  • Auxiliary Contact Configuration: 2 N.O. 4 N.C.

Overview

UPC 61259857671
Item Long Description 180 A MCS D Reversing Contactor
GTiN 00612598576715
Family Brand Name Allen Bradley
Number of Phases 3 Phase
Current 180 A
Type Reversing
Conductor Size 6 AWG - 300 MCM
Coil Voltage 220 - 230 VAC at 50 Hz, 240 VAC at 60 Hz
Temperature Rating -25 to 60 C
Power Rating 55 kW at 230 V, 90 kW at 400 V, 90 kW at 415 V, 110 kW at 500 V, 90 kW at 690 V, 132 kW at 1000 V, 110 kW at 200 V
Contact Configuration 2 NO, 4 NC Auxiliary
Environmental Conditions -40 to 80 C Storage, IEC 60068-2-27 Resistance to Shock, IEC 60068-2-6 Resistance to Vibration, 2000 NN Per IEC 60947-4 Maximum Altitude Of Installation Site, IEC 60068-2-30 Climatic Withstand
Number of Poles 3 Pole
