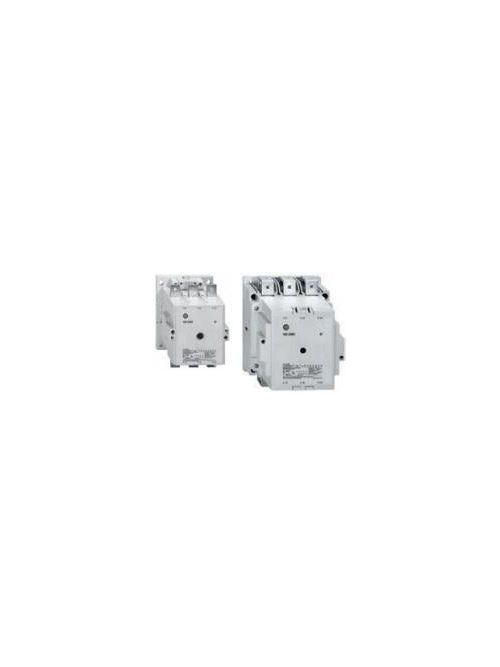

Allen Bradley 104-D210ED24 210 Amp Reversing MCS D Contactor
$5,260.00/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer AB-MCP
Mfg Catalog # 104-D210ED24
North Coast Part # 548338

Specifications

  • Coil Code: 110-130V 50/60Hz / 110-130V DC Electronic Coil w/ Elec. Interface
  • 3-Phase kW (50 Hz) 230V Rating: 67
  • 3-Phase kW (50 Hz) 400V Rating: 118
  • 3-Phase kW (50 Hz) 415V Rating: 122
  • 3-Phase kW (50 Hz) 500V Rating: 150
  • 3-Phase kW (50 Hz) 690V Rating: 205
  • 3-Phase kW (50 Hz) 1000V Rating: 110
  • 3-Phase HP (60 Hz) 200V Rating: 60
  • 3-Phase HP (60 Hz) 230V Rating: 75
  • 3-Phase HP (60 Hz) 460V Rating: 150
  • 3-Phase HP (60 Hz) 575V Rating: 200

Assembly

  • Factory or User Assembled?: Factory Assembled

System Voltage Data

  • Phases: Three Phase

Contactor Data

  • Rated Operating Current: 210 A
  • Coil Type: Electronic Coil w/ Electronic Interface
  • Control Voltage: 110-130 50/60Hz
  • Auxiliary Contact Configuration: 2 N.O. 4 N.C.

Features

  • Available integrated PLC interface
  • Simplifies selection with electronic wide-range AC/DC coils
  • Includes space-saving coil-mounted control modules
  • Includes reversible coil terminations (line or load side)
  • Includes electronic and pneumatic timing modules
  • Saves energy with low power consumption
  • Provides IP2X finger protection
  • Offers common accessories for all contactor sizes
  • Provides reversible coil terminations (line or load side)
  • Provides front and side mounting of auxiliary contacts
  • Reduces drop-out time to 18-23ms, a reduction of up to 50% compared to standard electronic coils
  • RoHs compliant
  • Includes built-in surge suppression
  • Meets IEC, UL, and CSA standards requirements
  • Complies with RoHs

Overview

UPC 78118084241
GTiN 00781180842412
Control Voltage 110/130 V
Family Brand Name Allen Bradley
Number of Phases 3 Phase
Current 210 A
Type Reversing
Conductor Size (2) 4 AWG - 350 MCM
Mounting Type Panel
Coil Voltage 110 - 130 VAC at 50/60 Hz
Temperature Rating -25 to 60 C
Power Rating 63 kW at 230 V, 118 kW at 400 V, 125 kW at 415 V, 205 kW at 500 V and 200 kW at 690 V, 110 kW at 1000 V
Contact Configuration 2 NO, 4 NC Auxiliary
Blade Dimensions 155 mm W x 180 mm D x 205 mm H
Environmental Conditions -40 to 80 C Storage Temperature, IEC 60068-2-30 Climatic Withstand, 2000 m NN, per IEC60947-4 Maximum Altitude of Installation Site
Number of Poles 3 Pole
