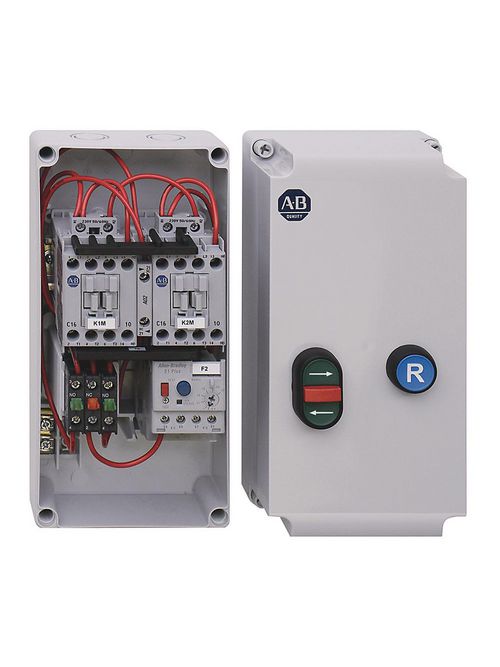

Allen Bradley 105-C09LDE1D-1M-7 Reversing Starter
Product image thumbnail 0
Product image thumbnail 1
Usually ships within 11 to 17 Days
Already a Customer? Log in to view your pricing
Manufacturer AB-CPB
Mfg Catalog # 105-C09LDE1D-1M-7
North Coast Part # 1493859


System Voltage Data

  • Phases: Three Phase

General Starter Data

  • Contactor Size: 104-C09
  • Enclosure: Type 1/4/4X/12 - IP66 Plastic - Large (indoor/Outdoor Use)

Overload Relay Data

  • Overload Relay Type: 193-EE, Adjustable Trip Class 10...30, Automatic/Manual Reset
  • Full Load Current Range (A): 3.20 - 16.0 A


  • Selections: Push Button START / STOP Multifunction


UPC 88495167301
GTiN 00884951673014
Type Enclosed, Compact, Reversing
Family Brand Name Allen Bradley
Number of Phases 3 Phase
Enclosure Type Watertight, Dusttight Corrosion-Resistant
Sub Brand IEC Enclosed
Contactor Size 104-C09
Material Molded Plastic
Applications For Indoor/Outdoor use
Coil Voltage 110 VAC at 50 Hz, 120 VAC at 60 Hz
Power Rating 4 kW at 380/415 V
Trip Class Class 10 - 30
Current 9 A
