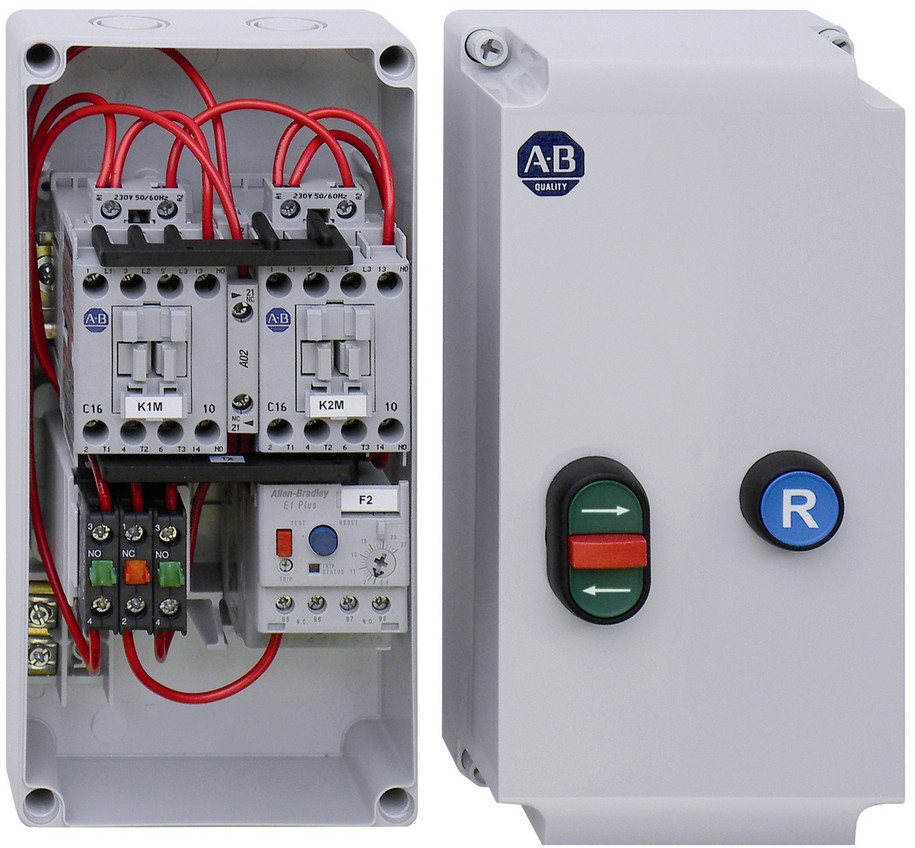

Allen Bradley 105-C23LDE1E-1M-7 Reversing Starter
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Usually ships within 11 to 17 Days
Already a Customer? Log in to view your pricing
Manufacturer AB-CPB
Mfg Catalog # 105-C23LDE1E-1M-7
North Coast Part # 1097506


  • Metal enclosures, IP42 Type 1 and IP66 Type 3/2/12
  • Bimetallic Class 10 or solid-state overload relays
  • Impact-resistance molded plastic enclosures, IP66 Type 4/4x/12


  • Max. kW (380/415V): 11
  • Max. Hp (230V) Three-Phase: 7-1/2
  • Max. Hp (460V) Three-Phase: 15
  • Max. Hp (575V) Three-Phase: 15
  • Coil Code: 110V 50Hz / 120V 60Hz

System Voltage Data

  • Phases: Three Phase

General Starter Data

  • Contactor Size: 104-C23
  • Enclosure: Type 1/4/4X/12 - IP66 Plastic - Large (indoor/Outdoor Use)

Overload Relay Data

  • Overload Relay Type: 193-EE, Adjustable Trip Class 10...30, Automatic/Manual Reset
  • Full Load Current Range (A): 5.40 - 27.0 A


  • Selections: Push Button START / STOP Multifunction


UPC 88495167327
Item Long Description IEC Enclosed Reversing Starter
GTiN 00884951673274
Type Enclosed, Compact, Reversing
Family Brand Name Allen Bradley
Number of Phases 3 Phase
Enclosure Type Watertight, Dusttight Corrosion-Resistant
Sub Brand IEC Enclosed
Contactor Size 104-C23
Material Molded Plastic
Applications For Indoor/Outdoor use
Coil Voltage 110 VAC at 50 Hz, 120 VAC at 60 Hz
Power Rating 11 kW at 380/415 V
Trip Class Class 10 - 30
Current 23 A
