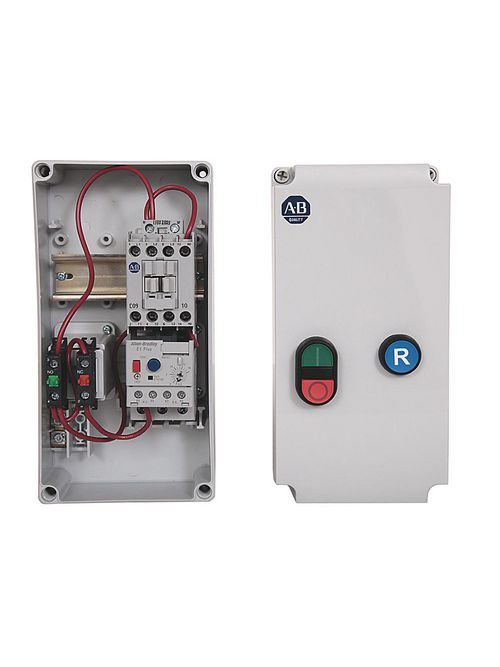

Allen-Bradley 109-C09KBE1D-1 109C IEC Enclosed Non-reversing Non-Combination Starter, 100-C09, Type 1/4/4X/12K - IP66 Plastic - Small (Indoor/Outdoor Use), 440V 50Hz / 480V 60Hz, E1 Plus OLR 3.20 - 16.00A
Product image thumbnail 0
Product image thumbnail 1
$356.11/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer AB-CPB
Mfg Catalog # 109-C09KBE1D-1
North Coast Part # 1018425

Features

  • Impact-resistance molded plastic enclosures, IP66 Type 4/4x/12
  • Metal enclosures, IP42 Type 1 and IP66 Type 3/2/12
  • Bimetallic Class 10 or solid-state overload relays

Specifications

  • Phase: Three Phase
  • Max. Hp, (115V) Single-Phase: 1/2
  • Max. Hp, (230V) Single-Phase: 1-1/2
  • Max. Hp, (575V) Three-Phase: 7-1/2
  • Amperage Rating: 100-C09 (9 Amps)

System Voltage Data

  • Phases: Three Phase

General Starter Data

  • Contactor Size: 100-C09
  • Enclosure: Type 1/4/4X/12K - IP66 Plastic - Small (Indoor/Outdoor Use)

Overload Relay Data

  • Overload Relay Type: 193-EE, Adjustable Trip Class 10...30, Automatic/Manual Reset
  • Full Load Current Range (A): 3.20 - 16.00A

Options

  • Selections: Push Buttons START (Green) and STOP (Raised Red)

Overview

UPC 88495167209
GTiN 00884951672093
Type Starter
Control Voltage 0 - 440 VAC at 50 Hz, 0 - 480 VAC at 60 Hz
Family Brand Name Allen Bradley
Number of Phases 3 Phase
Enclosure Type IP66/NEMA 4/4X/12 Plastic
Power Rating 4 kW at 400 VAC-3
Amperage 9 Amp
Sub Brand IEC Enclosed
Contactor Size 100-C09
Current 9 A
