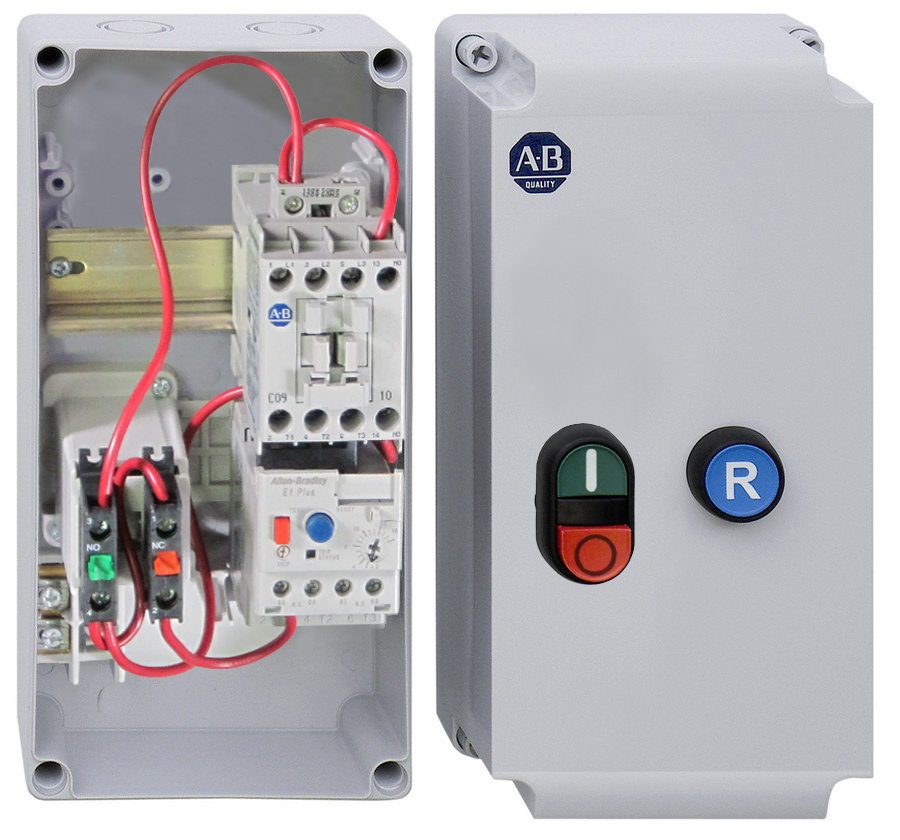

A-B 109-C09LDE1C-1M-4R-7 IEC Enclos
Product image thumbnail 0
Product image thumbnail 1
$509.72/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer AB-CPB
Mfg Catalog # 109-C09LDE1C-1M-4R-7
North Coast Part # 1890305

Specifications

  • Phase: Three Phase
  • Max. Hp, (115V) Single-Phase: 1/2
  • Max. Hp, (230V) Single-Phase: 1-1/2
  • Max. Hp, (575V) Three-Phase: 7-1/2
  • Amperage Rating: 100-C09 (9 Amps)

System Voltage Data

  • Phases: Three Phase

General Starter Data

  • Contactor Size: 100-C09
  • Enclosure: Type 1/4/4X/12K - IP66 Plastic - Large (Indoor/Outdoor Use)

Overload Relay Data

  • Overload Relay Type: 193-EE, Adjustable Trip Class 10...30, Automatic/Manual Reset
  • Full Load Current Range (A): 1.00 - 5.00A

Options

  • Selections: Push Button START / STOP Multifunction

Categories

Overview

UPC 88717299220
Item Long Description IEC Enclosed Starter
GTiN 00887172992209
Type Enclosed, Non-Reversing, Non-Combination
Family Brand Name Allen Bradley
Number of Phases 3 Phase
Enclosure Type Type 4/4X/12 - IP66 Plastic -L
Amperage 9 Amp
Sub Brand IEC Enclosed
Contactor Size 100-C09
Material Plastic
Applications For Indoor/Outdoor use
Coil Voltage 110 V at 50 Hz, 120 V at 60 Hz
Current 9 A
Blade Dimensions 3.86 in W x 4.37 in D x 8.19 in H
Trip Class Class 10 - 30, Adjustable
