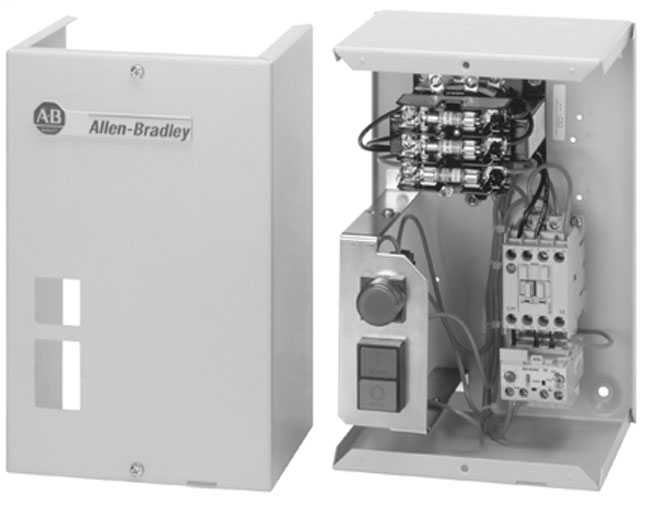

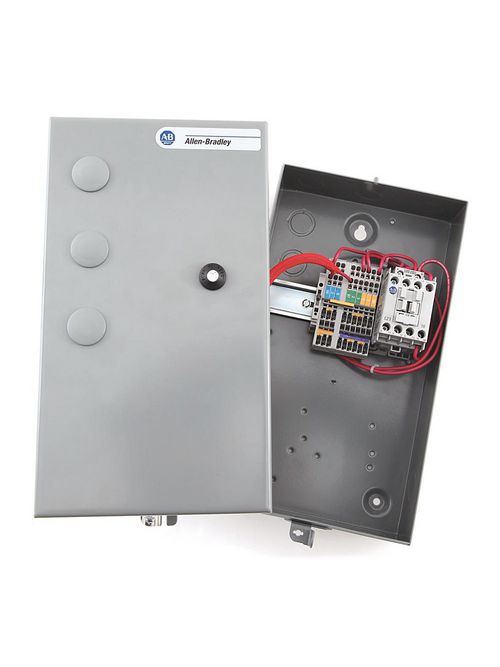

A-B 109-C16FDE1R-1 IEC Enclosed Sta
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$772.07/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer AB-CPB
Mfg Catalog # 109-C16FDE1R-1
North Coast Part # 676027

Features

  • Bimetallic Class 10 or solid-state overload relays
  • Impact-resistance molded plastic enclosures, IP66 Type 4/4x/12
  • Metal enclosures, IP42 Type 1 and IP66 Type 3/2/12

Specifications

  • Max. kW, (380/415V) Three-Phase: 7-1/2
  • Max. Hp, (460V) Three-Phase: 10
  • Max. Hp, (575V) Three-Phase: 15
  • Amperage Rating: 16 A

Assembly

  • Factory or User Assembled?: Factory Assembled

System Data

  • Supply Voltage: 120V 60Hz
  • Phases: Single Phase

Starter Data

  • Contactor Size: 16 A
  • Enclosure Type: NEMA Type 3/4/12 - IP66 (Metal)
  • Coil Voltage: 120V 60Hz
  • Overload Relay: Single Phase Solid State Overload Relay
  • Full Load Current Range: 3.2 - 16.0 Amps

Options

  • Factory Installed Modifications: START-STOP Push Button

Categories

Overview

UPC 61259859601
Item Long Description IEC Enclosed Starter
GTiN 00612598596010
Size 16 A
Type Separate Control, Enclosed
Material Metal
Coil Voltage 120 V
Control Voltage 110 - 120 V at 50/60 Hz
Family Brand Name Allen Bradley
NEMA 12,3,4
Number of Phases 1 Phase
Enclosure Type IP66/NEMA 3/4/12
Control Type Separate Control
Amperage 16 Amp
IP Rating IP66
Sub Brand IEC Enclosed
Contactor Size 16 A
Voltage 110 Volt
Current 3.2-16 A
