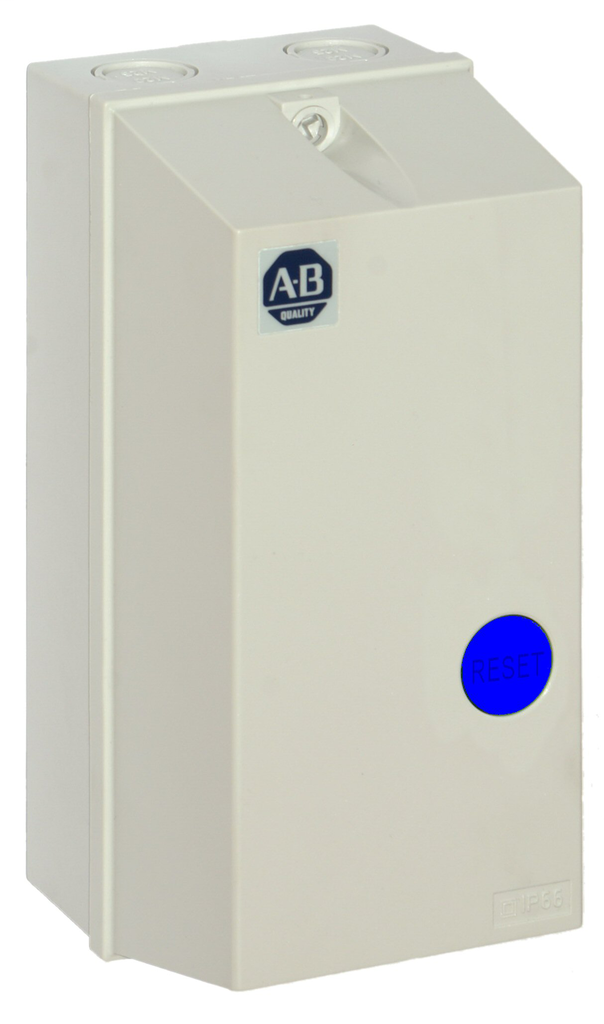

Allen-Bradley 109-C23KDXXX-7 109C IEC Enclosed Non-reversing Non-Combination Starter, 100-C23, Type 1/4/4X/12K - IP66 Plastic - Small (Indoor/Outdoor Use), 110V 50Hz / 120V 60Hz, E1 Plus OLR n/a
Usually ships within 11 to 17 Days
Already a Customer? Log in to view your pricing
Manufacturer Rockwell / Allen Bradley
Mfg Catalog # 109-C23KDXXX-7
North Coast Part # 999814


  • Max. kW, (380/415V) Three-Phase: 11
  • Max. Hp, (230V) Three-Phase: 7-1/2
  • Max. Hp, (460V) Three-Phase: 15
  • Max. Hp, (575V) Three-Phase: 15
  • Amperage Rating: 100-C23 (23 Amps)

General Starter Data

  • Contactor Size: 100-C23
  • Enclosure: Type 1/4/4X/12K - IP66 Plastic - Small (Indoor/Outdoor Use)

Overload Relay Data

  • Overload Relay Type: No Overload Relay
  • Full Load Current Range (A): n/a


  • Selections: Push Button RESET (Blue)


  • Metal enclosures, IP42 Type 1 and IP66 Type 3/2/12
  • Bimetallic Class 10 or solid-state overload relays
  • Impact-resistance molded plastic enclosures, IP66 Type 4/4x/12


UPC 88563052724
GTiN 00885630527246
Type Starter
Family Brand Name Allen Bradley
Enclosure Type IP66/NEMA 4/4X/12 Plastic
Amperage 23 Amp
Sub Brand IEC Enclosed
Contactor Size 100-C23
