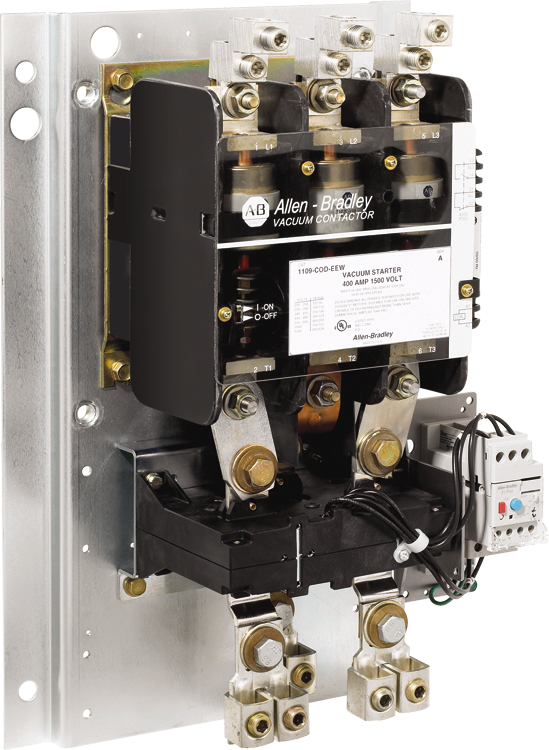

Allen Bradley 1109-COD-EEW 400 Amp Vacuum Starter with E10LR
Product image thumbnail 0
Product image thumbnail 1
$10,773.00/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer AB-MCP
Mfg Catalog # 1109-COD-EEW
North Coast Part # 1095822

Features

  • Non-combination with vacuum contactor and electronic overload relay with optional communication module
  • Line and load terminals for ease of wiring
  • 1500V AC maximum
  • Visual ON/OFF indicator

Specifications

  • Max. Hp, 60 Hz (200...208V): 125
  • Max. kW, 60 Hz (200...208V): 93
  • Max. Hp, 60 Hz (220...240V): 150
  • Max. kW, 60 Hz (220...240V): 112
  • Max. Hp, 60 Hz (440...480V): 300
  • Max. kW, 60 Hz (440...480V): 224
  • Max. Hp, 60 Hz (550...600V): 350
  • Max. kW, 60 Hz (550...600V): 261
  • Max. Hp, 60 Hz (1000V): 700
  • Max. kW, 60 Hz (1000V): 522
  • Max. Hp, 60 Hz (1500V): 850
  • Max. kW, 60 Hz (1500V): 634

Starter Data

  • Continuous Current Rating: 400A
  • Enclosure Type: Open
  • Control Voltage: 120V 50/60Hz
  • Overload Relay: Solid State Overload 80...400A

Overview

UPC 66207460592
GTiN 00662074605927
Control Voltage 120 VAC at 50/60 Hz
Family Brand Name Allen Bradley
Enclosure Type Open
Type Non-Reversing
Temperature Rating -40 to 135 F
Power Rating 450 VA Inrush, 18 VA Sealed
Blade Dimensions 13.3 in W x 8 in D x 21 in H
