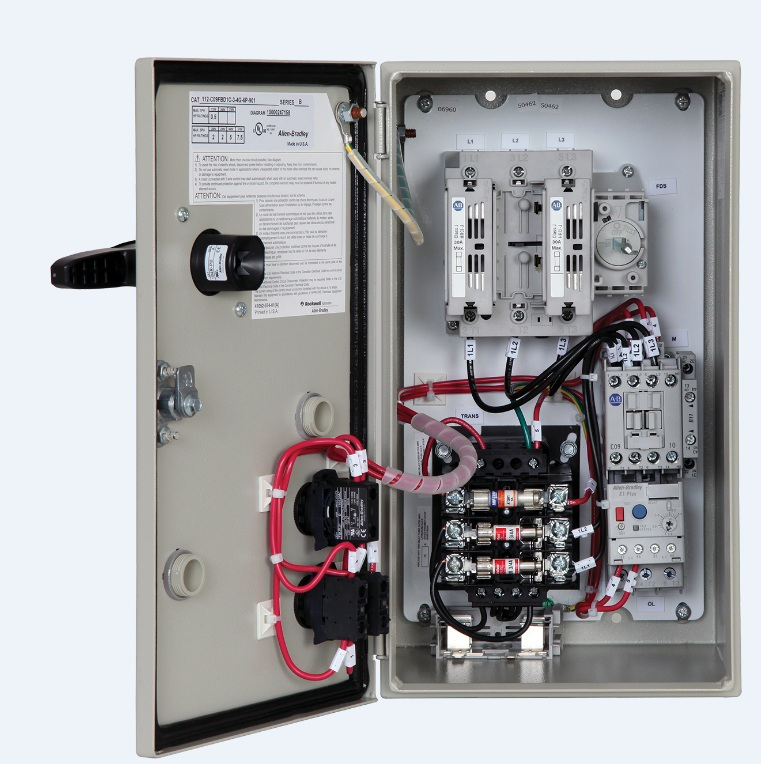

Allen-Bradley 112-C09ACDE1D Bulletin 112 - IEC Combination Starter, Fusible -ClassJ Disconnect Type, IP42 (Type 1 - Metal), 9 Amp, 575-600V 60Hz Primary / 120V 60Hz Secondary Separate Control
$983.00/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Rockwell / Allen Bradley
Mfg Catalog # 112-C09ACDE1D
North Coast Part # 823535

Specifications

  • Max. Hp, 575V (60Hz) Three-Phase: 7-1/2
  • Amperage Rating: 9 A

Assembly

  • Factory or User Assembled?: Factory Assembled

System Voltage Data

  • Supply Voltage: 600V 60Hz
  • Phases: Three Phase

Starter Data

  • Disconnect Type: Fusible -ClassJ
  • Contactor Size: 9 A
  • Enclosure Type: NEMA Type 1 - IP42 (Metal)
  • Coil Voltage: 120V 60Hz

Overload Relay Data

  • Overload Relay: Three Phase Solid State Overload Relay
  • Full Load Current Range: 3.2 - 16.0 Amps

Categories

Overview

UPC 61259835830
GTiN 00612598358304
Coil Voltage 575 - 600 VAC at 60 Hz, 120 VAC at 60 Hz
Family Brand Name Allen Bradley
NEMA 1
Number of Phases 3 Phase
Disconnect Type Fusible-Class J
Amperage 9 Amp
IP Rating IP42
Contactor Size 9 A
Type Compact, Separate Control, Fusible Disconnect
Material Sheet Metal
Applications Designed to Provide the Disconnecting Means, Short-Circuit Protection (with Suitable Fuses), Control and Overload Protection for Three-Phase Squirrel-Cage Motors
Blade Dimensions 200 mm W x 200 mm D x 350 mm H
Trip Class Class 10 - 30
