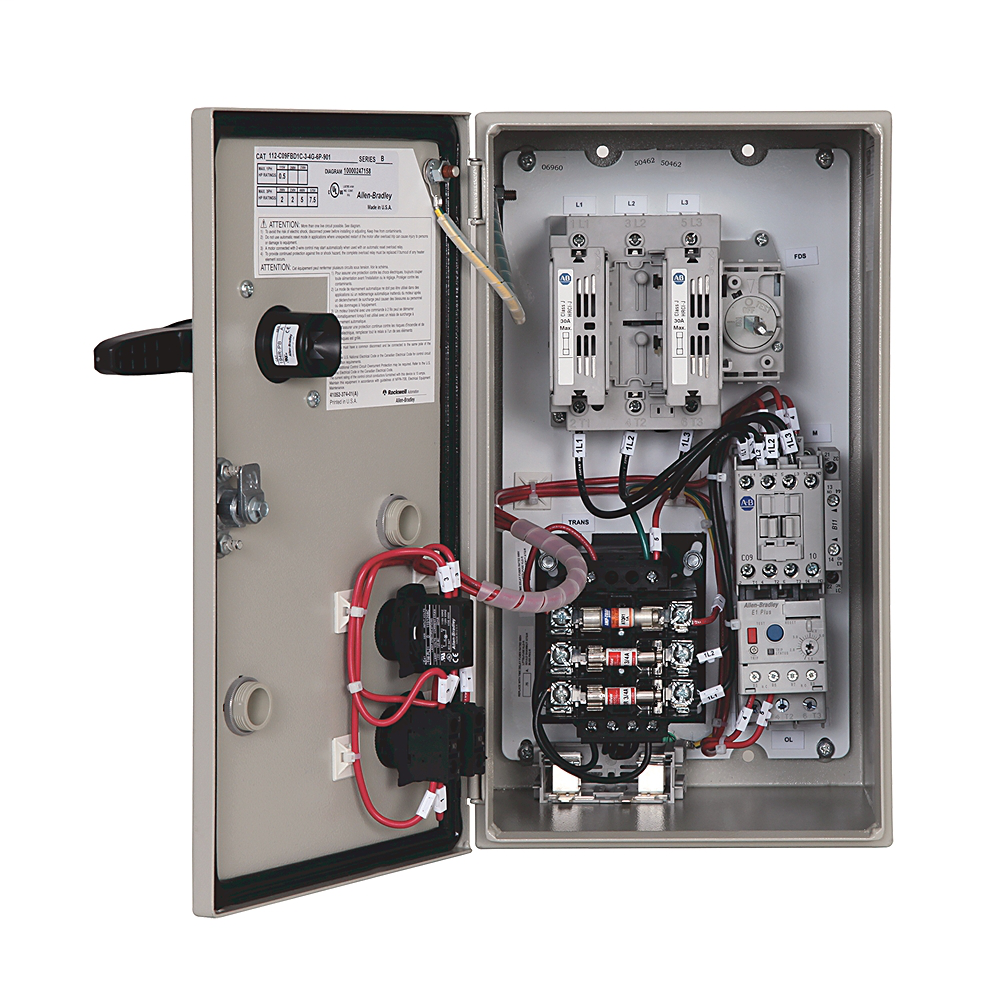

A-B 112-C09FBD1B-1-4R-6P Fusible Di
$1,949.00/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Rockwell / Allen Bradley
Mfg Catalog # 112-C09FBD1B-1-4R-6P
North Coast Part # 1277349

Specifications

  • Disconnect Type: Fusible -ClassJ
  • Enclosure Type: NEMA Type 3/4/12 - IP66 (Metal)
  • Phases: Three Phase
  • Supply Voltage: 480V 60Hz
  • Max. Hp, 575V (60Hz) Three-Phase: 7-1/2
  • Full Load Current Range: .20 - 1.0 Amps
  • Overload Relay: MCS-E1 Plus Class 10 w/Manual Reset
  • Coil Voltage: 120V 60Hz
  • Amperage Rating: 9 A

Overview

UPC 88563092271
GTiN 00885630922713
Coil Voltage 120 V
Family Brand Name Allen Bradley
NEMA 3,12,4
Number of Phases 3 Phase
Disconnect Type Fusible-Class J
Amperage 9 Amp
IP Rating IP66
Type Non-Reversing, Combination
Material Sheet Metal
Control Voltage 480 V
Enclosure Type Type 3/4/12, Watertight, Dusttight
Contact Configuration 1 NO Auxiliary
Blade Dimensions 200 mm W x 200 mm D x 350 mm H
Trip Class Class 10
